• BIOS:
  • 4Mb Flash ROM
  • AMI BIOS
  • PnP
  • DMI2.0
  • WfM2.0
  • SM BIOS 2.3
  • ACPI 2.0a
  • C.P.R.(CPU Parameter Recall)
  • CrashFree BIOS2
  • ASUS EZ Flash
  • MyLogo2
  • PXE
  • RPL

• Manageability:
  • WfM 2.0
  • DMI 2.0
  • WOL by PME
  • WOR by PME

• Accessories:
  • 1 x UltraDMA133/100/66 cable
  • 1 x Serial ATA cable
  • 1 x Serial ATA power cable
  • 1 x FDD cable
  • User's manual
  • I/O shield
  • Drivers
  • ASUS PC Probe
  • Bundle anti-virus software (OEM version)
  • ASUS LiveUpdate Utility

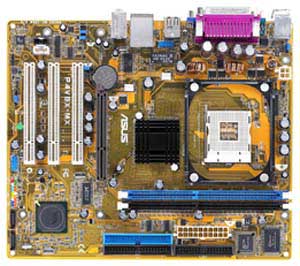

Motherboard Specifications

• Model:
  • Asus P4V8X-MX

• Processor Support:
  • Socket 478 for Intel Pentium 4/ Celeron
  • Intel Hyper-Threading Technology ready
  • Supports Intel Prescott CPU

• Chipset:
  • VIA P4M800
  • VIA 8237R PLUS

• FSB:
  • 800/533/400 MHz


• Memory:
  • 2 x 184-pin DIMM Sockets support max. 2GB DDR333/266 non-ECC DDR SDRAM memory
  • Obtain DDR DIMMs only from ASUS qualified vendors. Refer to the Qualified DDR400 vendors(QVL) list.


• Expansion Slots:
  • 1 x AGP 8X (1.5V only)
  • 3 x PCI

• On-Board Audio:
  • Cmedia CMI9761A
  • 6-channel CODEC


• On-Board Video:
  • Integrated UniChrome Pro 3D / 2D Graphics & Video Controller

• On-Board LAN:
  • Integrated 10/100 Mbps LAN controller
  • VIA 6103 PHY

• Storage/RAID:
  • VIA 8237R PLUS South Bridge
  • 2 x Serial ATA, RAID 0, RAID 1, JBOD
  • 2 x UltraDMA 133/100/66/33

• Rear Panel I/O Ports:
  • 1 x Parallel
  • 1 x Serial
  • 1 x PS/2 Keyboard
  • 1 x PS/2 Mouse
  • 1 x VGA
  • 1 x 6-channel Audio I/O
  • 4 x USB 2.0/1.1
  • 1 x RJ45

• Form Factor:
  • microATX Form Factor
  • 9.6"x 8"(24.5cm x 19.6cm)


• Industrial Standard
  • PCI 2.2, USB 2.0
