• Internal I/O Interface:
  • 2 x USB 2.0 connectors supports additional 4 USB 2.0 ports
  • 1 x IDE connector
  • 1 x Floppy disk drive connector
  • 4 x SATA connectors
  • 1 x COM connector
  • 1 x IEEE1394a connectors
  • CPU / Chassis Fan connectors
  • Front panel Audio connector
  • Chassis Intrusion connector
  • CD audio-in connector
  • 1 x S/PDIF output connector
  • 24-pin EATX Power connector
  • 4-pin ATX12V Power connector
  • System panel connector

• BIOS:
  • 4 Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.3

• Special Features:
  • ASUS CrashFree BIOS 2
  • ASUS EZ Flash 2
  • ASUS O.C. Profile
  • ASUS C.P.R.(CPU Parameter Recall)
  • MyLogo

• Manageability:
  • WOL by PME,WOR by PME, Chassis Intrusion, PXE

• Accessories:
  • P5L-VM 1394
  • User Manual
  • Driver Disk
  • Rear I/O Panel Shield
  • IDE/PATA Cable
  • FDD Cable
  • 2 x SATA Cable
  • Power Cable

Motherboard Specifications

• Model:

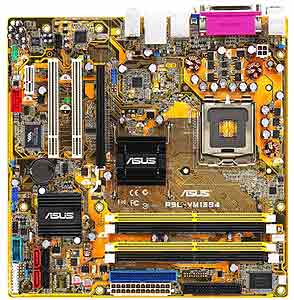

  • Asus P5L-VM 1394

• Processor Support:
  • Socket 775
  • Core 2 Extreme / Core 2 Duo / Pentium D / Celeron
  • Intel EM64T / EIST / Hyper-Threading Technology

• Chipset:
  • Intel 945G

• FSB:
  • 1066/800MHz

• Memory:
  • 4—240pin
  • DDR2 667
  • Dual Channel Supported

• Expansion Slots:
  • 1 x PCI Express x16
  • 1 x PCI Express x1
  • 2 x PCI Slots

• On-Board Video:
  • Onboard Video Chipset Intel GMA 950

• On-Board Audio:
  • Realtek ALC883 High Definition Audio CODEC, 6-channel audio port
  • Support Jack-sensing, Enumeration, Multi-Streaming and Jack-Retasking

• On-Board LAN:
  • Attansic PCIe Gigabit LAN Controller
  • 10/100/1000Mbps

• Storage:
  • 1 x ATA100 up to 2 Devices
  • 4 x SATA 3Gb/s

• Rear Panel I/O Ports:
  • 1 x PS/2 Keyboard
  • 1 x PS/2 Mouse
  • 1 x Parallel port
  • 1 x VGA out
  • 1 x IEEE 1394a port
  • 1 x LAN (RJ45)
  • 4 x USB 2.0/1.1
  • 6-Channel Audio I/O

• Form Factor:
  • Micro ATX
  • 9.6" x 9.6"
  • 24.5cm x 24.5cm
