• Rear Panel I/O Ports:
  • 1 x PS/2 Keyboard
  • 1 x PS/2 Mouse
  • 1 x Parallel port
  • 1 x IEEE 1394a
  • 1 x S/PDIF Out (optical & coaxial)
  • 7.1 Channel audio connectors
  • 4 x USB 2.0/1.1 ports
  • 1 x RJ 45 Port


• Firewire:
  • VIA6308P controller supports 2 x 1394a ports


• Power Connector :
  • 1 x 24 pin main power
  • 1 x 8 pin CPU power


• Form Factor:
  • ATX Form Factor
  • 12"x 9.6" (30.5cm x 24.5cm)

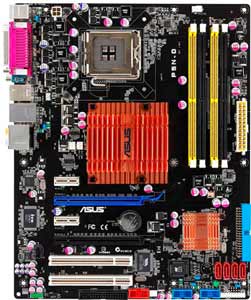

Asus P5N-D Motherboard

• Model:
  • Asus P5N-D Motherboard

• Processor Support:
  • Supports Intel® Core2 Quad / Core2 Extreme / Core2 Duo / Pentium® Extreme / Pentium® D / Pentium® 4 / Celeron® D
  • Compatible with Intel® 05B/05A/06 processors
  • Support Intel® next generation 45nm Multi-Core CPU
  • Socket LGA 775


• FSB:
  • 1333/1066/800 Mhz


• Chipset:
  • nVidia nForce 750i SLI

• Memory:
  • 4x 240-pin DDR2 DIMM socket support up to 8 GB
  • Support Dual Channel DDR2 800/667/533 Mhz
  • Non-ECC, un-buffered


• Expansion Slots:
  • 2 x PCIe 2.0 x16 - Single VGA mode: x16 - SLI mode: Hardware ready for x16, x16
  • 2 x PCIe x1
  • 2 x PCI 2.2
  • Support two identical NVIDIA SLI-Ready graphics cards (Hardware ready for x16, x16)


• Storage:
  • 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
  • 4 xSATA 3 Gb/s ports NVIDIA MediaShield RAID: Support RAID 0,1,0+1,5,JBOD span cross Serial ATA drives


• Audio:
  • RealTek ALC883 8-channel High Definition Audio CODEC
  • Coaxial / Optical S/PDIF out ports at back I/O
  • Support Jack-Sensing, Enumeration, Multi-streaming


• On-Board LAN:
  • NVIDIA nForce® 750i SLI built-in Gigabit MAC with external PHY


• BIOS:
  • 8Mb Award BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.3, Multi-Language BIOS
  • WfM 2.0,DMI 2.0,WOL/WOR by PME,WOR by Ring,PXE,AI NET2 WO USB/KB/MS
