• Rear Panel I/O Ports:
  • 1 x PS/2 Keyboard
  • 1 x IEEE 1394a
  • 1 x S/PDIF Out (optical & coaxial)
  • 7.1 Channel audio connectors
  • 6 x USB 2.0/1.1 ports
  • 2 x RJ 45 Port


• Firewire:
  • VIA6308P controller supports 2 x 1394a ports


• Power Connector :
  • 1 x 24 pin main power
  • 1 x 8 pin CPU power


• BIOS:
  • 8Mb Award BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.3, Multi-Language BIOS
  • WOL by PME,WOR by PME,Chasis Intrusion, PXE

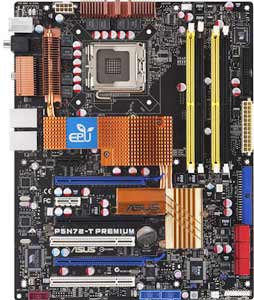

Asus P5N72-T Premium Motherboard

• Model:
  • Asus P5N72-T Premium Motherboard

• Processor Support:
  • Supports Intel ® Core2 Quad / Core2 Extreme / Core2 Duo / Pentium ® Extreme / Pentium ® D / Pentium ® 4 / Celeron ® D
  • Compatible with Intel ® 05B/05A/06 processors
  • Support Intel ® next generation 45nm Multi-Core CPU
  • Socket LGA 775


• FSB:
  • 1600/1333/1066/800 Mhz


• Chipset:
  • NVIDIA nForce 780i SLI

• Memory:
  • 4x 240-pin DDR2 DIMM socket support up to 8 GB
  • Support Dual Channel DDR2 1200/1066/800/667 Mhz
  • Non-ECC, un-buffered


• Expansion Slots:
  • 2 x PCIe 2.0 x16 ,support NVIDIA ® SLI technology, at full x16, x16 speed(blue)
  • 1 x PCIe x16 , at x16 speed(middle)
  • 2 x PCIe x1 ( the PCIEx1_1 (black) is compatible with audio slot)
  • 2 x PCI 2.2
  • Support three identical NVIDIA SLI-Ready graphics cards (all at x16 mode)


• Storage:
  • 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
  • 6 xSATA 3 Gb/s ports NVIDIA MediaShield RAID: Support RAID 0,1,0+1,5,JBOD span cross Serial ATA drives


• Audio:
  • ROG SupremeFX II Audio Card 8
  • - Channel High Definition Audio CODEC
  • - ADI 1988B 8-channel High Definition Audio CODEC
  • - Noise Filter
  • Coaxial, Optical S/PDIF out at back I/O


• On-Board LAN:
  • Dual Gigabit LAN, both featuring AI NET2
  • Support Teaming Technology


• Form Factor:
  • ATX Form Factor 12"x 9.6" (30.5cm x 24.5cm)
