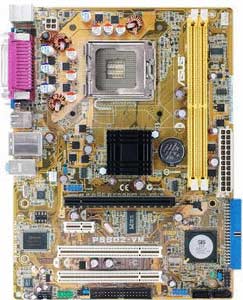

Asus P5SD2-VM Motherboard
Supports Intel ® Core2 Duo / Pentium ® Extreme / Pentium ® D / Pentium ® 4 / Celeron ® D processor in the Socket LGA 775, SIS 672 chipset, 1 x PCI Express x16, 1 x PCIe x1, 2 x 32-bit PCI, DDR2, LAN, USB, IDE, SATA2, RAID, Video, Audio, SPDIF, uATX Form Factor
|
|
- Internal I/O Interface:
- 1 x Floppy connector
- 2 x USB 2.0/1.1 headers
- 1 x S/PDIF Out Header
- 2 x SATA2 ports
- 1 x IDE Port
- Rear Panel I/O Ports:
- 1 x PS/2 Keyboard port(purple)
- 1 x PS/2 Mouse
- 1 x Parallel
- 6-Channel Audio I/O
- 1 x VGA Port
- 1 x COM Port
- 4 x USB 2.0/1.1 ports
- 1 x RJ 45 Port
- Power Connector :
- 1 x 24 pin main power
- 1 x 4 pin CPU power
- On-Board LAN:
|
Asus P5SD2-VM Motherboard
- Model:
- Asus P5SD2-VM Motherboard
- Processor Support:
- Supports Intel ® Core2 Duo / Pentium ® Extreme / Pentium ® D / Pentium ® 4 / Celeron ® D
- Support Intel® EIST/Hyper-Threading Technology
- Support Intel ® next generation 45nm Multi-Core CPU
- Socket LGA 775
- FSB:
- Chipset:
- Memory:
- 2x 240-pin DDR2 DIMM socket support up to 4 GB
- Support Dual Channel DDR2 667/533 Mhz
- Non-ECC, un-buffered
- Expansion Slots:
- 1 x PCIe x16
- 1 x PCIe x1
- 2 x PCI 2.2
- Storage:
- SIS 968 South Bridge:
- 2 x SATA 3Gb/s with RAID 0 and RAID 1 function
- Audio:
- Realtek ALC662 6-channel CODEC
- Support Jack-detect and SPIDF-OUT interface
- Video:
- SIS Mirage 3+ Integrated Graphics
- Up to 256MB shared memory
- BIOS:
- 4 Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0, ACPI3.0, SM BIOS2.4
- WOL by PME, WOR by PME, Chassis Intrusion, PXE
- Form Factor:
- mATX Form Factor
- 9.6”x 7.2”(24.4cm x 18.3cm)
|
