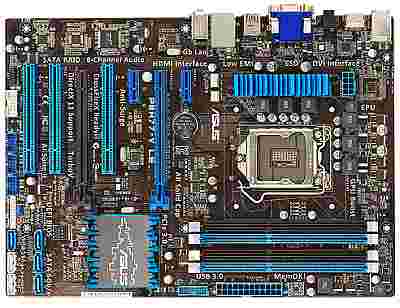

Asus P8H77-V LE Motherboard

• Storage:
  Intel ® H77 chipset :
  • 2 x SATA 6Gb/s port(s), gray
  • 4 x SATA 3Gb/s port(s), blue
  • Support Raid 0, 1, 5, 10
  • Supports Intel ® Smart Response Technology, Intel ® Rapid Start Technology, Intel ® Smart Connect Technology *3

• Rear Panel I/O Ports:

  • 1 x PS/2 keyboard/mouse combo port(s)
  • 1 x DVI-D
  • 1 x D-Sub
  • 1 x HDMI
  • 1 x LAN (RJ45) port(s)
  • 2 x USB 3.0
  • 4 x USB 2.0
  • 1 x Optical S/PDIF out
  • 3 x Audio jack(s)

• Internal I/O Interface:

  • 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s)
  • 3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
  • 1 x COM port(s) connector(s)
  • 2 x SATA 6Gb/s connector(s)
  • 4 x SATA 3Gb/s connector(s)
  • 1 x CPU Fan connector(s)
  • 1 x Chassis Fan connector(s)
  • 1 x S/PDIF out header(s)
  • 1 x 24-pin EATX Power connector(s)
  • 1 x 8-pin ATX 12V Power connector(s)
  • 1 x Front panel audio connector(s) (AAFP)
  • 1 x System panel(s)
  • 1 x MemOK! button(s)
  • 1 x Clear CMOS jumper(s)

• BIOS:

  • 64 Mb Flash ROM, UEFI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 4.0, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3

• Manageability:
  • WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE

• Accessories:
  • User's manual
    I/O Shield
    2 x SATA 6Gb/s cable(s)

Motherboard Specifications

• Model:
  • Asus P8H77-V LE Motherboard

• Processor Support:

  • Intel ® Socket 1156 for 3rd/2nd Generation Processors
  • Supports Intel ® 22 nm CPU
  • Supports Intel ® 32 nm CPU
  • Supports Intel ® Turbo Boost Technology 2
  • * The Intel ® Turbo Boost Technology 2.0 support depends on the CPU types.

• Chipset:
  • Intel ® H77

• Memory:

  • 4 x DIMM, Max. 32GB, DDR3 MHz Non-ECC, Un-buffered Memory
  • Dual Channel Memory Architecture
  • Supports Intel ® Extreme Memory Profile (XMP)

• Expansion Slots:

  • 1 x PCIe 3.0/2.0 x16 (blue) *2
  • 1 x PCIe 2.0 x16 (x4 mode, black)
  • 1 x PCIe 2.0 x1
  • 3 x PCI

• On-Board Video:

  • Integrated Graphics Processor
  • Multi-VGA output support : HDMI/DVI/RGB ports
  • - Supports HDMI with max. resolution 1920 x 1200 @ 60 Hz
  • - Supports DVI with max. resolution 1920 x 1200 @ 60 Hz
  • - Supports RGB with max. resolution 2048 x 1536 @ 75 Hz
  • Maximum shared memory of 1696 MB
  • Supports Intel ® HD Graphics, InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider

• On-Board Audio:
  • Realtek ® ALC887 8-Channel High Definition Audio CODEC *4
    - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
    Audio Feature :
    - Optical S/PDIF out port(s) at back panel

• On-Board LAN:
  • Realtek ® 8111F, 1 x Gigabit LAN Controller(s)

• Special Features:

  • ASUS Digital Power Design :
  • - Industry leading 4 + 1 + 1 Phase Power Design
  • - ASUS DIGI+ VRM Utility
  • ASUS Protect 3 Technology :
  • - Anti-Surge Protection
  • - Low EMI Solution
  • - ESD
  • TurboV
  • GPU Boost
  • ASUS Exclusive Features :
  • - MemOK!
  • - AI Suite II
  • - Ai Charger
  • - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
  • - Network iControl
  • - USB 3.0 Boost
  • - Disk Unlocker
  • ASUS Quiet Thermal Solution :
  • - Stylish Fanless Design Heat-sink solution
  • - ASUS Fan Xpert
  • ASUS EZ DIY :
  • - ASUS O.C. Tuner
  • - ASUS CrashFree BIOS 3
  • - ASUS EZ Flash 2
  • - ASUS MyLogo 2
  • 100% All High-quality Conductive Polymer Capacitors

• Form Factor:
  • uATX Form Factor
    12 inch x 8.6 inch ( 30.5 cm x 21.8 cm )
