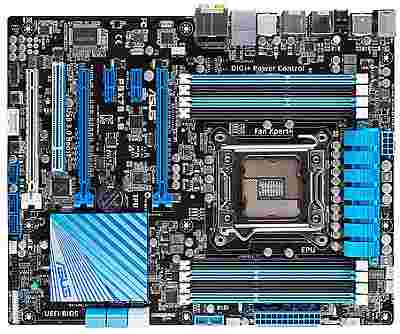

Asus P9X79 LE Motherboard

• Storage:
         Intel ® X79 chipset :
  • 2 x SATA 6Gb/s port(s), gray
  • 4 x SATA 3Gb/s port(s), blue
  • Support Raid 0, 1, 5, 10
        ASMedia ® ASM1061 controller :
  • 2 x eSATA 6Gb/s port(s), red

• Rear Panel I/O Ports:

  • 1 x PS/2 keyboard (purple)
  • 1 x PS/2 mouse (green)
  • 2 x eSATA 6Gb/s
  • 1 x LAN (RJ45) port(s)
  • 2 x USB 3.0
  • 8 x USB 2.0
  • 1 x Optical S/PDIF out
  • 6 x Audio jack(s)

• Internal I/O Interface:

  • 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin)
  • 3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
  • 1 x TPM connector(s)
  • 1 x COM port(s) connector(s)
  • 2 x SATA 6Gb/s connector(s)
  • 4 x SATA 3Gb/s connector(s)
  • 1 x CPU Fan connector(s) (4 -pin)
  • 1 x CPU OPT Fan connector(s) (4 -pin)
  • 4 x Chassis Fan connector(s) (4 -pin)
  • 1 x S/PDIF out header(s)
  • 1 x 24-pin EATX Power connector(s)
  • 1 x 8-pin ATX 12V Power connector(s)
  • 1 x Front panel audio connector(s) (AAFP)
  • 1 x System panel(s) (Q-Connector)
  • 1 x DirectKey Button(s)
  • 1 x DRCT header(s)
  • 1 x MemOK! button(s)
  • 1 x Clear CMOS jumper(s)
  • 1 x USB BIOS Flashback button(s)

• BIOS:
  • 64 Mb Flash ROM, UEFI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.6, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3

• Manageability:
  • WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE

• Accessories:

  • User's manual
  • I/O Shield
  • 2 x SATA 3Gb/s cable(s)
  • 2 x SATA 6Gb/s cable(s)
  • 1 x SLI bridge(s)
  • 1 x Q-connector(s) (2 in 1)

Motherboard Specifications

• Model:
  • Asus P9X79 LE Motherboard


• Processor Support:
  • Intel ® Socket 2011 for 2nd Generation Core i7 Processors
    Supports Intel ® Turbo Boost Technology 2.0

• Chipset:
  • Intel ® X79

• Memory:
  • 8 x DIMM, Max. 64GB, DDR3 2400(O.C.)/2133(O.C.)/1866/1600/1333/1066 MHz Non-ECC, Un-buffered Memory
    Quad Channel Memory Architecture
    Supports Intel ® Extreme Memory Profile (XMP)
    * Hyper DIMM support is subject to the physical characteristics of individual CPUs.

• Expansion Slots:

  • 2 x PCIe 3.0/2.0 x16 (dual x16) *1
  • 1 x PCIe 3.0/2.0 x16 (x8 mode) *1
  • 2 x PCIe 2.0 x1
  • 1 x PCI

• On-Board Audio:

  • Realtek ® ALC892 8-Channel High Definition Audio CODEC
  • - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
        Audio Feature :
  • - Absolute Pitch 192kHz/ 24-bit True BD Lossless Sound
  • - Blu-ray audio layer Content Protection
  • - Optical S/PDIF out port(s) at back panel

• On-Board LAN:
  • Realtek ® 8111F, 1 x Gigabit LAN Controller(s)

• Special Features:
  • ASUS Dual Intelligent Processors 3 with New DIGI+ Power Control :
    ASUS TPU :
    - Auto Tuning
    - TurboV
    ASUS EPU :
    - EPU
    ASUS Digital Power Design :
    - Industry leading Digital 6 + 2 Phase CPU Power Design
    - Industry leading Digital 2 + 2 Phase DRAM Power Design
    - CPU Power Utility
    - DRAM Power Utility
    ASUS Exclusive Features :
    - Remote GO!
    - USB BIOS Flashback
    - MemOK!
    - AI Suite II
    - Ai Charger
    - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
    - USB 3.0 Boost
    ASUS Quiet Thermal Solution :
    - Stylish Fanless Design Heat-sink solution
    - ASUS Fan Xpert+
    ASUS EZ DIY :
    - DirectKey
    - ASUS O.C. Profile
    - ASUS CrashFree BIOS 3
    - ASUS EZ Flash 2
    - ASUS MyLogo 2
    - Multi-language BIOS
    ASUS Q-Design :
    - ASUS Q-Shield
    - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
    - ASUS Q-Slot
    - ASUS Q-DIMM
    - ASUS Q-Connector

• Form Factor:
  • ATX Form Factor
    12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
