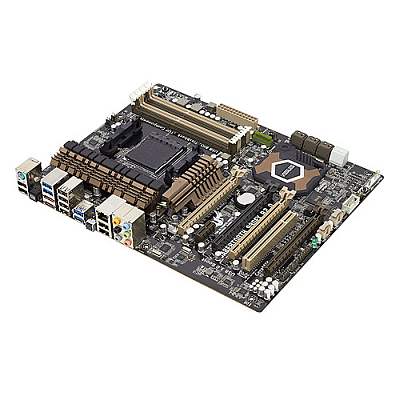

ASUS SABERTOOTH 990FX R2.0 Motherboard

• Rear Panel I/O Ports:
  • 1 x PS/2 keyboard/mouse combo port(s)
  • 2 x eSATA 6Gb/s
  • 1 x LAN (RJ45) port(s)
  • 4 x USB 3.0 (blue)
  • 8 x USB 2.0
  • 1 x Optical S/PDIF out
  • 6 x Audio jack(s)
  • 1 x USB BIOS Flashback Button(s)
• Internal I/O Interface:
  • 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin, moss green)
  • 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
  • 1 x TPM connector(s)
  • 1 x COM port(s) connector(s)
  • 8 x SATA 6Gb/s connector(s)
  • 1 x CPU Fan connector(s) (1 x 4 -pin)
  • 1 x CPU OPT Fan connector(s) (1 x 4 -pin)
  • 4 x Chassis Fan connector(s) (4 x 4 -pin)
  • 1 x S/PDIF out header(s)
  • 1 x 24-pin EATX Power connector(s)
  • 1 x 8-pin ATX 12V Power connector(s)
  • 1 x Front panel connector(s)
  • 1 x System panel(s) (Q-Connector)
  • 1 x DirectKey Button(s)
  • 1 x DRCT header(s)
  • 1 x MemOK! button(s)
  • 1 x Clear CMOS jumper(s)

• USB Ports:
  • ASMedia ® USB 3.0 controller :
  • 2 x USB 3.0/2.0 port(s) (2 at mid-board)
  • ASMedia ® USB 3.0 controller :
  • 4 x USB 3.0/2.0 port(s) (4 at back panel, blue)
  • AMD SB950 controller :
  • 12 x USB 2.0/1.1 port(s) (8 at back panel, , 4 at mid-board)
• Accessories:
  • User's manual
  • ASUS Q-Shield
  • 4 x SATA 6Gb/s cable(s)
  • 1 x SLI bridge(s)
  • 1 x Q-connector(s) (2 in 1)
  • 1 x TUF Certification card(s)
  • 1 x TUF 5 Year Warranty manual(s) (by region)
• On-Board LAN:
  • Realtek ® 8111F, 1 x Gigabit LAN Controller(s)

• BIOS:
  • 64 Mb Flash ROM, UEFI BIOS, PnP, SLP2.1, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, F12 PrintScreen, F3 Shortcut Function and ASUS DRAM SPD (Serial Presence Detect) memory information
• Support Disc:
  • Drivers
  • Anti-virus software (OEM version)
  • ASUS Update
  • ASUS Utilities
• Manageability:
  • WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE

Motherboard Specifications

• Model:
  • ASUS SABERTOOTH 990FX R2.0 Motherboard

• CPU:
  • AMD FX/Phenom II/Athlon II/Sempron 100 Series Processors
  • Supports AM3+ 32 nm CPU
  • Supports CPU up to 8 cores
  • Supports CPU up to 140 W
  • AMD Cool 'n' Quiet Technology
• System Bus:
  • Up to 5.2 GT/s HyperTransport 3.0
• Chipset:
  • AMD 990FX/SB950
• Memory:
  • 4 x DIMM, Max. 32GB, DDR3 1866/1600/1333/1066 MHz ECC, Non-ECC, Un-buffered Memory
  • Dual Channel Memory Architecture
    * Refer to www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists).
    * Due to OS limitation, when installing total memory of 4GB capacity or more, Windows ® 32-bit operation system may only recognize less than 3GB. Install a 64-bit Windows ® OS when you want to install 4GB or more memory on the motherboard.
    * Due to CPU spec., AMD 100 series CPUs support up to DDR3 1066MHz. With ASUS design, this motherboard can support up to DDR3 1333MHz.
• Expansion Slots:
  • 3 x PCIe 2.0 x16 (dual x16 or x16/x8/x8) *1
  • 1 x PCIe 2.0 x16 (x4 mode, black)
  • 1 x PCIe 2.0 x1
  • 1 x PCI
• On-Board Audio:
  • Realtek ® ALC892 8-Channel High Definition Audio CODEC
    Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • Audio Feature :
    Absolute Pitch 192kHz/ 24-bit True BD Lossless Sound
    Blu-ray audio layer Content Protection
    ASUS Noise Filter
    Optical S/PDIF out port(s) at back panel
• Multi-GPU Support:
  • Supports NVIDIA ® Quad-GPU SLI Technology
  • Supports AMD Quad-GPU CrossFireX Technology
• Storage:
  • AMD SB950 controller :
  • 6 x SATA 6Gb/s port(s), brown
  • Support Raid 0, 1, 5, 10
  • ASMedia ® PCIe SATA controller :
  • 2 x SATA 6Gb/s port(s), gray
  • 2 x eSATA 6Gb/s port(s), red
• Special Features:
  • TUF ENGINE! Power Design :
    8 +2 Digital Phase Power Design
    TUF Components (Alloy choke, Cap. & MOSFET; certified by military-standard)
    ASUS DIGI+ Power Control Utility
    E.S.P. : Efficient Switching Power Design
  • Ultimate COOL! Thermal Solution :
    TUF CeraM!X Heatsink Coating Tech.
    TUF Thermal Radar
  • ASUS Exclusive Features :
    Remote GO!
    USB BIOS Flashback
    MemOK!
    AI Suite II
    Ai Charger+
    Anti-Surge
    ESD Guards
    Front Panel USB 3.0 Support
    ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
    Network iControl
    USB 3.0 Boost
  • ASUS EZ DIY :
    DirectKey
    ASUS O.C. Profile
    ASUS EZ Flash 2
    ASUS MyLogo 2
    Multi-language BIOS
  • ASUS Q-Design :
    ASUS Q-Shield
    ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
    ASUS Q-Slot
    ASUS Q-DIMM
    ASUS Q-Connector

• Form Factor:
  • ATX Form Factor
  • 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
