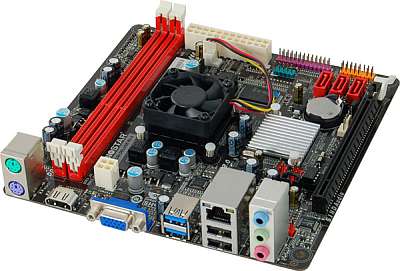

BIOSTAR A68I-350 DELUXE R2.0 Motherboard

• Rear Panel I/O Ports:
  • 1 x PS/2 Mouse
  • 1 x PS/2 Keyboard
  • 2 x USB 3.0 Port
  • 2 x USB 2.0 Port
  • 1 x HDMI Connector
  • 1 x VGA Port
  • 1 x RJ-45 Port
  • 3 x Audio Connector
• Internal I/O Interface:
  • 1 x Printer Header
  • 2 x USB 2.0 Header
  • 3 x SATA3 6Gb/s Connector
  • 1 x Front Audio Header
  • 1 x Front Panel Header
  • 1 x S/PDIF-OUT Header
  • 1 x CPU FAN Header
  • 1 x System FAN Header
  • 1 x Serial Header
• OS SUPPORT:
  • Support Windows XP / Vista / 7 / 8

Motherboard Specifications

• Model:
  • BIOSTAR A68I-350 DELUXE R2.0 Motherboard

• CPU:
  • AMD Fusion APU 350D Dual-Core Processor
• Chipset:
  • AMD A68
• Memory:
  • Support DDR3 1066/800 MHz
  • 2 x DDR3 DIMM Memory Slot
  • Max. Supports up to 16GB Memory
• Expansion Slots:
  • 1 x PCI-E x16 2.0 Slot (x4)
• On-Board Audio:
  • Realtek ALC662 6-Channel HD Audio
• On-Board Video:
  • AMD Radeon HD 6310 Graphics, On Board Graphic Max. Memory Share Up to 512 MB
  • Supports DX11
  • VGA Port
  • HDMI Port
• Storage:
  • 3 x SATA3 Connector
• USB Ports:
  • 2 x USB 3.0 Port
  • 2 x USB 2.0 Port
  • 2 x USB 2.0 Header
• Special Features:
  • Windows 8 Compatible
  • Supports BIO-Remote2
  • Supports Solid capacitor
  • Supports BIOS-Flasher
  • Supports Charger Booster
  • Supports BIOS Online Update
• Accessories:
  • 2 x SATA Cable
  • 1 x I/O Shield
  • 1 x DVD Driver
  • 1 x Quick Guide
• On-Board LAN:
  • Realtek RTL8111F - 10/100/1000 Controller
• Form Factor:
  • Mini ITX Form Factor
  • Dimension: 17cm x 17cm ( W x L ) (6.7 Inch x 6.7 Inch)
