• Storage:
  • 2 x SATA Connector
  • Support SATA RAID: 0,1
  • 2 x IDE Connector


• Rear Panel I/O Ports:
  • 1 x PS/2 Mouse
  • 1 x PS/2 Keyboard
  • 1 x 9 pin serial port
  • 1 x VGA Port
  • 1 x RJ-45 Port
  • 3 x Audio Connector
  • 4 x USB 2.0 Port


• Internal I/O Interface:
  • 1 Floppy connector support up to two drives
  • 2 IDE connector: up to two ATA133 devices
  • 2 x SATA Connector
  • 1 x Front Audio Header
  • 1 x Front Panel Header
  • 1 x CD-IN Header
  • 1 x S/PDIF-OUT Header
  • 1 x CPU FAN Header
  • 1 x System FAN Header
  • 1 x Printer Header
  • 4 USB 2.0 ( headers

Motherboard Specifications

• Model:

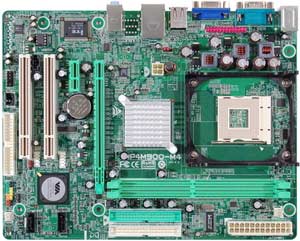

  • Biostar P4M900-M4 Motherboard
  • Version 6.0

• Processor Support:
  • Intel Pentium 4/Celeron D Processor
  • Socket 478

• Chipset:
  • VIA P4M900 / VT8237A

• FSB:
  • 400/533/800MHz

• Memory:
  • Support DDR2 533/667 MHz
  • Max. Supports up to 4GB Memory
  • 2 x DDR2 DIMM Memory Slot

• Expansion Slots:
  • 1 x PCI-E x1 Slot
  • 1 x PCI-E x16 Slot
  • 2 PCI


• Integrated Video:
  • VIA Chrome9 HC IGP
  • On Board Graphic Max. Memory Share Up to 256MB


• Integrated Audio:
  • Realtek ALC861VD 5.1 Channel audio output


• On-Board LAN:
  • Realtek RTL8201CL - 10/100 PHY


• BIOS:
  • Award BIOS

• Form Factor:
  • Micro ATX Form Factor
  • Dimensions: 9.6" X 7.5"
