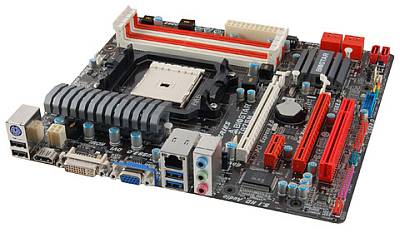

BIOSTAR TA75M Motherboard

• Rear Panel I/O Ports:
  • 1 x PS/2 Keyboard
  • 2 x USB 3.0 Port
  • 2 x USB 2.0 Port
  • 1 x HDMI Connector
  • 1 x DVI Connector
  • 1 x VGA Port
  • 1 x RJ-45 Port
  • 3 x Audio Connector
• Internal I/O Interface:
  • 1 x Printer Header
  • 1 x USB 3.0 Header
  • 2 x USB 2.0 Header
  • 6 x SATA3 6Gb/s Connector
  • 1 x Front Audio Header
  • 1 x Front Panel Header
  • 1 x S/PDIF-OUT Header
  • 1 x CPU FAN Header
  • 2 x System FAN Header
  • 1 x Serial Header
  • 1 x CIR Header

• USB Ports:
  • 2 x USB 3.0 Port
  • 1 x USB 3.0 Header
  • 2 x USB 2.0 Port
  • 2 x USB 2.0 Header
• On-Board LAN:
  • Realtek RTL8111E - 10/100/1000 Controller

• OS SUPPORT:
  • Support Windows XP / Vista / 7

Motherboard Specifications

• Model:
  • BIOSTAR TA75M Motherboard

• CPU:
  • AMD A8 Processor
  • AMD A6 Processor
  • AMD A4 Processor
  • AMD E2 Processor
  • Maximum CPU TDP (Thermal Design Power) : 100Watt
• Chipset:
  • AMD A75
• Memory:
  • Support Dual Channel DDR3 2000(OC)/1866/1600/1333/1066/800 MHz
  • 4 x DDR3 DIMM Memory Slot
  • Max. Supports up to 32GB Memory
• Expansion Slots:
  • 2 x PCI-E x16 2.0 Slot (x16 + x4)
  • 1 x PCI-E x1 2.0 Slot
  • 1 x PCI Slots
• On-Board Audio:
  • Realtek ALC892 6-Channel Blu-ray Audio
• On-Board Video:
  • By CPU model
  • Maximum resolution: VGA:1920x1600, DVI-D:1920x1200, HDMI:1920x1200
  • VGA Port
  • DVI Port
  • HDMI Port
• Storage:
  • 6 x SATA3 Connector
  • Support SATA RAID: 0,1,10
• Special Features:
  • Supports uEFI GUI Interface BIOS
  • Supports BIO-Remote2
  • Supports BIO-Remote
  • Windows 7 Compatible
  • Supports 100% Solid capacitor
  • Supports Rapid Switch
  • Supports Rapid Debug
  • Supports BIOS-Flasher
  • Supports Toverclcoker OC software
  • Supports GPU
• Accessories:
  • 3 x SATA Cable
  • 1 x SATA Power Cable
  • 1 x I/O Shield
  • 1 x CD Driver
  • 1 x User Manual
• Form Factor:
  • Micro ATX Form Factor
  • Dimension: 24.4cm x 22.5cm ( W x L ) (9.6 Inch x 8.6 Inch)
