• Rear Panel I/O Ports:
  • 1 mini-DIN-6 PS/2 mouse port
  • 1 mini-DIN-6 PS/2 keyboard port
  • 1 optical S/PDIF
  • 1 S-Video TV-out port
  • 1 VGA port
  • 1 DVI-D port
  • 1 IEEE 1394 port
  • 1 RJ45 LAN port
  • 4 USB 2.0/1.1 ports
  • Center/subwoofer, rear R/L and side R/L jacks
  • Line-in, line-out (front R/L) and mic-in jacks

• Internal I/O Interface:
  • 2 connectors for 4 additional external USB 2.0/1.1 ports
  • 1 connector for 1 external COM port
  • 1 connector for 1 external IEEE 1394 port
  • 1 front audio connector for external line-out and mic-in jacks
  • 1 CD-in internal audio connector
  • 1 coaxial S/PDIF connector
  • 1 IrDA connector
  • 4 Serial ATA connectors
  • 2 IDE connectors
  • 1 floppy connector
  • 1 24-pin ATX main power connector
  • 1 4-pin ATX 12V power connector
  • 1 front panel connector
  • 3 fan connectors

• BIOS:
  • Award BIOS
  • 4Mbit flash memory

• Hardware Monitoring:
  • Monitors CPU/system temperature
  • Monitors 5V/12V/3.3V/5VSB/Vbat/Vcore/Vdimm/Vchip voltages
  • Monitors the speed of the cooling fans
  • CPU Overheat Protection function monitors CPU temperature during system boot-up

• Manageability:
  • ACPI and OS Directed Power Management
  • ACPI STR (Suspend to RAM) function
  • Wake-On-PS/2 Keyboard/Mouse
  • Wake-On-USB Keyboard/Mouse
  • Wake-On-LAN
  • Wake-On-Ring
  • RTC timer to power-on the system

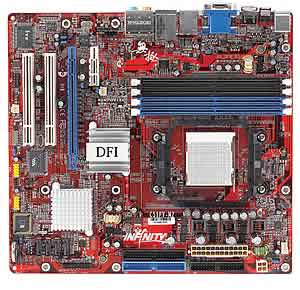

Motherboard Specifications

• Model:
  • DFI Infinity C51PV-M2/G

• Processor Support:
  • Socket AM2
  • AMD ® Athlon 64 FX / Athlon 64 X2 / Athlon 64 / Sempron

• Chipset:
  • North bridge: NVIDIA ® GeForce 6150 GPU

• FSB:
  • 2000MT/s HyperTransport

• Memory:
  • Four 240-pin DDR2 DIMM sockets
  • Supports DDR2 533 and DDR2 667 DIMMs
  • Supports dual channel (128-bit wide) memory interface
  • Supports up to 4GB system memory

• Expansion Slots:
  • 1 PCI Express x16 slot
  • 1 PCI Express x1 slot
  • 2 PCI slots

• On-Board Video:
  • Graphics integrated in the GeForce 6150 GPU
  • Includes NVIDIA ® PureVideo technology that delivers smooth High-Definition (HD) video in all formats and outstanding picture clarity
  • VGA to connect VGA monitor
  • DVI-D to connect devices that support DVI-D
  • S-Video to connect a TV with S-Video output
  • Dual display using DVI-D + S-Video or DVI-D + VGA interfaces (devices connected to these interfaces can be displayed simultaneously)

• On-Board Audio:
  • Realtek ALC850 8-channel AC™97 audio CODEC
  • S/PDIF-in/out interface

• On-Board LAN:
  • nForce 430 MCP integrated with Gigabit MAC (Media Access Control) technology and external Vitesse VSC8601 Gigabit Phy

• Storage:
  • Supports two IDE connectors that allows connecting up to four UltraDMA 133Mbps hard drives
  • Supports four Serial ATA ports
  • SATA speed up to 3Gb/s
  • RAID 0, RAID 1, RAID 0+1 and RAID 5

• Form Factor:
  • MATX Form Factor
  • 24.4cm (9.6") x 26.4cm (10.4")
