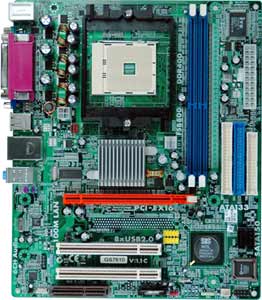

ECS GOAL3+ + Sempron 3000 Motherboard
Supports AMD Athlon 64/Sempron processor in the Socket 754 + Athlon CPU 3000+, SiS 761GX chipset, 1 x PCIe x16, 1 x CNR Slot, 2 x 32-bit 33MHz PCI, DDR, LAN, USB, IDE, SATA, RAID, Video, Audio, SPDIF, Micro-ATX Form Factor |
|
- Internal I/O Interface:
- 1 x Floppy connector
- 2 x USB 2.0/1.1 headers
- 1 x S/PDIF out header
- 2 x COM2 header
- 2 x SATA ports
- 2 x IDE Port
- Rear Panel I/O Ports:
- 1 x PS/2 Keyboard
- 1 X PS/2 Mouse
- 1 x D-Sub port
- 1 x parallel port
- 1 x serial port
- 1 set 5.1 channel Audio Jack (3 jacks)
- 4 x USB 2.0/1.1 ports
- 1 x RJ 45 Port
- Video:
- Integrated SiS Mirage 1 2D/3D Graphics
- Share memory: up to 128MB
|
ECS GOAL3+ + Sempron 3000 Motherboard
- Model:
- ECS GOAL3+ + Sempron 3000 Motherboard
- Processor Support:
- Supports AMD Athlon 64/Sempron
- Socket 754
- FSB:
- Chipset:
- Memory:
- Single-channel DDR memory architecture
- 2 x 184-pin DDR DIMM socket support up to 2 GB
- Support DDR400/333/266 DDR SDRAM
- Expansion Slots:
- 1 x PCIe x16
- 1 x CNR Slot
- 2 x PCI 32bit/33MHz slots
- Storage:
- 2 x IDE connector supporting ATA-133/100/66/33 and up to 4 IDE devices
- 2 x SATA ports 150
- RAID 0, RAID 1 configuration
- Audio:
- ADI AD1888
- 2/4/5.1
- Compliant with AC'97 2.3 specification
- On-Board LAN:
- Realtek RTL8201CL 10/100Mbps Fast Ethernet Controller
- BIOS:
- Award BIOS with 4Mb Flash ROM
- Supports Plug and Play, STR/STD, Hardware monitor, Multi Boot, DMI
- Supports ACPI revision 1.0 specification
- Form Factor:
- Micro-ATX Form Factor, 244 x 224 mm
|
