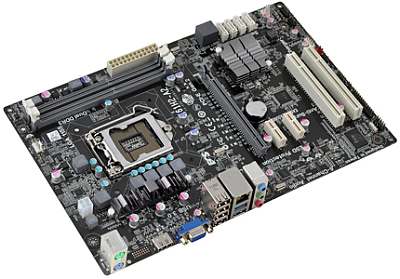

ECS H61H2-A2 Deluxe (V1.0) Motherboard

• Rear Panel I/O Ports:
  • 1 x PS/2 keyboard & PS/2 mouse connectors
  • 1 x D-sub(VGA)
  • 1 x DVI connector(optional)
  • 1 x HDMI Port
  • 1 x RJ45 LAN connector
  • 1 x Audio port (Line-in, Line-out, Mic-in)
  • 4 x USB 2.0 Ports
  • 2 x USB 3.0 Ports
• Internal I/O Interface:
  • 1 x 24-pin ATX Power Supply connector
  • 1 x 4-pin ATX 12V connector
  • 1 x 4-pin CPU_FAN connector
  • 1 x 3-pin PWR_FAN connector
  • 1 x 3-pin SYS_FAN connector
  • 2 x USB 2.0 headers support additional 4 USB 2.0 Ports
  • 4 x Serial ATA 3Gb/s connectors
  • 2 x Serial ATA 6Gb/s connectors
  • 1 x COM header
  • 1 x LPT header
  • 1 x Front panel switch/LED header
  • 1 x Front panel audio header
  • 1 x Case Open header
  • 1 x Speaker header
  • 1 x Clear CMOS header
  • 1 x SPDIF out header
  • 1x 2-pin ME_UNLOCK header
• Expansion Slots:
  • 1 x PCI Express x16 Gen2.0 slot
  • 2 x PCI Express x1 slots
  • 2 x PCI slots
    PCIe Gen3 is supported by Intel 3rd CPU
• On-Board LAN:
  • Realtek 8111E 10/100/1000 Fast Ethernet Controller
  • Supports Wake-On-LAN
• Storage:
  • Support by Intel ® H61
    4 x Serial ATA 3.0Gb/s devices
  • Support by ASMEDIA ASM1061
    2 x Serial ATA 6.0Gb/s devices
  • Supports NCQ, AHCI and "Hot Plug" functions
• Bundled Software:
  • ECS Intelligent EZ Utility : eBLU, eDLU, eOC, eSF
  • Free Bundle: Norton Internet Security ,CyberLink Media Suite, Muzee with trial version
• OS Support:
  • Windows XP 32/64bit
  • Windows Vista 32/64bit
  • Windows 7 32/64bit
  • Windows 8 32/64bit

Motherboard Specifications

• Model:
  • ECS H61H2-A2 Deluxe (V1.0) Motherboard

• CPU:
  • LGA1155 socket for new 2nd & 3rd Generation Intel ® Core Family/ Pentium ® /Celeron ® Processors
  • Supports Intel ® 22nm CPU
  • Supports Intel ® 32nm CPUs
  • Supports Intel ® Turbo boost 2.0 technology
  • Supports Hyper-Threading Technology CPU
  • Intel ® K Series Unlock CPU Support
  • Intel ® Secure Key (Intel 3rd gen CPU i5 or above)
  • Intel ® OS Guard (Windows 8)
  • AES New Instructions (AES-NI) (Intel 3rd gen CPU i5 or above)
  • DMI 20Gb/s
• SYSTEM BIOS:
  • AMI BIOS with 32Mb SPI ROM
  • Supports Plug and Play, STR (S3) / STD (S4) , Hardware monitor, Multi Boot
  • Audio, LAN, can be disabled in BIOS
  • F7 hot key for boot up devices option
  • Supports Page Up clear CMOS Hotkey
  • Supports eDLU
  • Supports eSF
  • Supports eBLU
  • Support GUI UEFI BIOS
  • Supports ACPI 3.0 & DMI
  • Supports ECS M.I.B III Utility
  • Graphic Voltage Adjustable
  • Supports Graphic Voltage Adjustable
  • Supports Multi-language BIOS
• Chipset:
  • Intel ® H61 Express Chipset
  • Intel ® Identity Protection Technology
  • Supports dual stream HDMI & DP audio
• Memory:
  • Dual-channel DDR3 memory architecture
  • 2 x 240-pin DDR3 DIMM socket support up to 16 GB*
  • Supports DDR3 1066/1333/1600(with Ivy Bridge)SDRAM
  • Supports for non-ECC memory modules
  • Intel ® Extreme Memory Profile (XMP) 1.3/1.2 Memory Modules
    Note: Please go to ECS website for the latest Memory support list.
    *(Due to the DRAM maximum size is 4GB at present, the memory maximum size we have tested is 8GB)
    Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows?32-bit OS.
    For Windows?64-bit OS with 64-bit CPU, there is no such limitation
• On-Board Audio:
  • Realtek ALC662 6-channel HD audio CODEC
  • 6 Channel High Definition Audio (Realtek ALC662 or VIA VT1708B)
  • Compliant with HD audio specification
  • Meets performance requirements for Microsoft WLP 3.08 Vista premium and mobile PCs
  • Six channel DAC supports 16/20/24-bit PCM format for 5.1 channel audio solution
  • Emulation of 26 sound environments to enhance gaming experience
  • Voice Cancellation and Key Shifting in Karaoke mode
  • Compatible with Direct Sound 3D, A3D, I3DL2
  • Capability for œfull rate BluRay / DVD / HD DVD support.
• On-Board Video:
  • Intel HD Graphics 2000/3000(Intel 2nd gen CPU) & 2500/4000(Intel 3rd gen CPU)
  • Supports Intel ® Quick Sync Video 2.0 (Intel 3rd gen CPU), Advanced Vector Extensions, Clear Video HD Technology, InTru 3D
  • Supports HDMI 1.4a & Premium Audio
  • Integrated DirectX 11 graphics processor
  • Supports OpenGL 3.1(Intel 3rd gen CPU)
  • Supports OpenCL 1.1(Intel 3rd gen CPU)
  • Supports Switchable Graphics
  • Integrated DP with up to 2560x1600 resolution
  • Supports Full HD 1080P Blu-ray / HD-DVD Playback

• Form Factor:
  • ATX Size,
  • 305mm*195mm (12 Inch x 7.7 Inch)
