• Rear Panel I/O Ports:
  • 1 x PS/2 Keyboard
  • 1 X PS/2 Mouse
  • 1 x D-Sub port
  • 1 x Firewire
  • 1 x Parallel port (SPP/ECP/EPP)
  • 1 X COM A connector
  • 1 set 7.1 channel Audio Jack (6 jacks)
  • 4 x USB 2.0/1.1 ports
  • 1 x RJ 45 Port


• Firewire:
  • TI TSB43AB22APDT


• Special Features :
  • Performance optimization
  • Voltage adjustment
  • SuperBIOS-Protect
  • nTune, SuperBIOS
  • NVIDIA Firewall, SuperRecovery

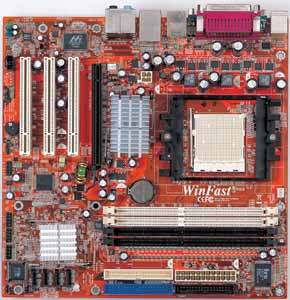

Foxconn 6150K8MA-8EKRS Motherboard

• Model:
  • Foxconn 6150K8MA-8EKRS Motherboard

• Processor Support:
  • Supports AMD Athlon 62 x2 Dual core / Athlon 64FX / Athlon 64 / Sempron processors
  • Socket 939


• FSB:
  • 2000MT/s


• Chipset:
  • NVIDIA GeForce 6150

• Memory:
  • Four 184-pin dual channel DDR DIMM slots
  • Supports dual channel DDR 266/333/400 memory
  • Supports 128/256/512/1024Mb technology up to 4GB


• Expansion Slots:
  • 1 x PCI-E x16
  • 3 x PCI 32bit/33MHz slots


• Storage:
  • 2 x IDE connector supporting ATA-133/100/66/33 and up to 4 IDE devices
  • 4 x SATA 3Gb/s connectors (SATAII0, SATAII1, SATAII2, SATAII3) supporting up to 3 SATA 3Gb/s devices
  • Support RAID 0, 1, 5, 0+1


• Audio:
  • 7.1 channel (Realtek ALC850)
  • 2/4/5.1/7.1
  • Support for CD In
  • Support for S/PDIF Out


• Video:
  • Integrated nVidia high-performance graphics controller


• On-Board LAN:
  • Integrated NVIDIA Gigabit Ethernet (GbE, 10/100/1000) w/ ActiveArmor
  • Marvell 88E1111-RCJ GbE PHY


• BIOS:
  • AWARD BIOS
  • 1 x 4 Mbit flash
  • ACPI 2.0b, APM 1.2, PnP 1.0a, SMBIOS 2.3


• Form Factor:
  • Micro ATX
  • 9.6 x 9.6 inch
