• Rear Panel I/O Ports:
  • 1 x PS/2 Keyboard
  • 1 X PS/2 Mouse
  • 1 x Firewire
  • 1 x Parallel port (SPP/ECP/EPP)
  • 1 X COM A connector
  • 1 set 7.1 channel Audio Jack (6 jacks)
  • 1 x S/PDIF out (coax)
  • 1 x S/PDIF out (optical)
  • 1 x eSATA
  • 4 x USB 2.0/1.1 ports
  • 2 x RJ 45 Port


• Firewire:
  • TI TSB43AB22APDT


• Special Features :
  • NVIDIA ® MediaShield and nTune
  • SLI-Ready
  • SuperBIOS-Protect
  • SuperRecovery
  • AMD ® Cool œn Quiet technology
  • SuperBIOS
  • NVIDIA Firewall

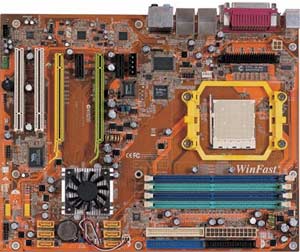

Foxconn N570SM2AA-8EKRS2H Motherboard

• Model:
  • Foxconn N570SM2AA-8EKRS2H Motherboard

• Processor Support:
  • Supports AMD Athlon 62 x2 Dual core / Athlon 64FX / Athlon 64 / Sempron processors
  • Socket AM2


• FSB:
  • 2000MT/s


• Chipset:
  • NVIDIA nForce 570 SLI

• Memory:
  • Four 240-pin dual channel DDR2 DIMM slots
  • Supports dual channel DDR 800/667/533 memory
  • Up to 8GB


• Expansion Slots:
  • 2 x PCI-E x16 (operate at 2 x8 in NVIDIA SLI mode)
  • 2 x PCI-E x1
  • 2 x PCI 32bit/33MHz slots


• Storage:
  • 2 x IDE connector supporting ATA-133/100/66/33 and up to 4 IDE devices
  • 6 x SATA 3Gb/s connectors supporting up to 6 SATA 3Gb/s devices
  • 1 x SATA II/300 internal + 1 eSATA (secondary controller)
  • Support RAID 0, 1, 0+1, 5, and JBOD


• Audio:
  • 7.1 channel (Realtek ALC882H)
  • 2/4/5.1/7.1
  • Support for CD In
  • Support for S/PDIF Out


• On-Board LAN:
  • 2 x NVIDIA Gigabit Ethernet (10/100/1000) controllers, dual rear ports, PCIe (Marvell PHY)


• BIOS:
  • AWARD BIOS
  • 1 x 4 Mbit flash
  • ACPI 2.0b, APM 1.2, PnP 1.0a, SMBIOS 2.3


• Form Factor:
  • ATX, 12 x 9.6 inch
