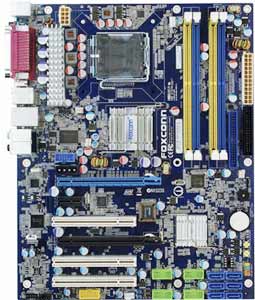

Foxconn P35A Motherboard
Supports Intel® Core2 Quad, Core2 Extreme, Core2 Duo, Pentium® EE, Pentium® D, Pentium® 4, Celeron® D processors in the LGA 775 package, Intel ® P35 chipset, 2 x PCIe x16, 1 x PCIe x1, 3 x 32-bit 33MHz PCI, DDR2, LAN, USB, IDE, SATA2, eSATA, Audio, SPDIF, ATX Form Factor |
|
- Internal I/O Interface:
- 1 x Floppy connector
- 4 x USB 2.0/1.1 headers
- 1 x COM header
- 4 x SATA2 ports
- 1 x IDE Port
- Rear Panel I/O Ports:
- 1 x PS/2 Keyboard
- 1 X PS/2 Mouse
- 1 x parallel (SPP/ECP/EPP)
- 1 x serial port
- 1 set 7.1 channel audio jacks (6 jacks)
- 1 x S/PDIF out Coaxial
- 4 x USB 2.0/1.1 ports
- 1 x eSATA
- 1 x RJ 45 Port
- Management:
- STR (Suspend-to-RAM)
- STD (Suspend-to-Disk)
- SuperSpeed, SuperBoot
- SuperBIOS-Protect
- SuperRecovery, SuperUpdate
- SuperStep, SuperLogo
- Supports ATI CrossFire
|
Foxconn P35A Motherboard
- Processor Support:
- Supports Intel® Core2 Quad, Core2 Extreme, Core2 Duo, Pentium® EE, Pentium® D, Pentium® 4, Celeron® D processors
- Socket LGA 775
- FSB:
- Chipset:
- Memory:
- Four DDR2 DIMM memory slots (supports up to 8GB memory)
- Supports 240 pins DDR2 DIMM 1.8 V
- Supports DDR2 533/667/800 DIMM
- Expansion Slots:
- 2 x PCIe x16(function as 2 x8 under ATI CrossFire)
- 1 x PCIe x1
- 3 x PCI 32bit/33MHz slots
- Storage:
- 1 x ATA 133
- 4 x SATA2 ports 300 Mbps
- 1 x eSATA
- Audio:
- 7.1 channel, high definition, Azalia (Realtek ALCALC883)
- 2/4/5.1/7.1
- Support for CD In
- On-Board LAN:
- Realtek 8111B Gigabit Ethernet Controller
- BIOS:
- AWARD BIOS
- 1 x 8 Mbit flash
- PnP 1.0a, DMI 2.0, SM BIOS 2.3, ACPI 1.0b
- Form Factor:
- ATX Form Factor
- 12 x 9.6 inch
|
