• Rear Panel I/O Ports:
  • 1 x PS/2 Keyboard
  • 1 X PS/2 Mouse
  • 1 x parallel port
  • 1 x serial port
  • 1 set 7.1 channel audio jacks (5 jacks)
  • 1 x S/PDIF optical out
  • 4 x USB 2.0/1.1 ports
  • 1 x eSATA
  • 1 x RJ 45 Port


• Management:
  • STR (Suspend-to-RAM)
  • STD (Suspend-to-Disk)
  • SuperSpeed
  • SuperBoot
  • SuperBIOS-Protect
  • SuperRecovery
  • SuperUpdate
  • SuperStep, SuperLogo

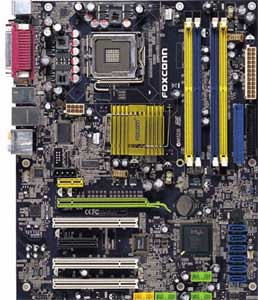

Foxconn P9657AA-8KS2H Motherboard

• Model:
  • Foxconn P9657AA-8KS2H Motherboard

• Processor Support:
  • Supports Intel ® Core2 Duo, Pentium ® D, Pentium ® 4 and Celeron ® D processors
  • Socket LGA 775


• FSB:
  • 1066/800/533 MHz


• Chipset:
  • Intel ® P965

• Memory:
  • Four DDR2 DIMM memory slots (supports up to 8GB memory)
  • Supports 240 pins DDR2 DIMM 1.8 V
  • Supports DDR2 533/667/800 DIMM


• Expansion Slots:
  • 1 x PCIe x16
  • 1 x PCIe x4
  • 1 x PCIe x1
  • 3 x PCI 32bit/33MHz slots


• Storage:
  • 1x ATA 133
  • 1 x eSATA
  • 6x SATA2 ports 300 Mbps
  • Supports RAID 0, RAID 1, RAID 5, RAID 10,JBOD


• Audio:
  • 7.1 channel, high definition, Azalia (Realtek ALCALC883)
  • 2/4/5.1/7.1
  • Support for CD In


• On-Board LAN:
  • Integrated Gigabit Ethernet (10/100/1000) controller (Marvell 88E8056)


• BIOS:
  • AWARD BIOS
  • 1 x 4 Mbit flash
  • PnP 1.0a, DMI 2.0, SM BIOS 2.3, ACPI 1.0b


• Form Factor:
  • ATX Form Factor, 12 x 9.6 inch
