• Internal I/O Interface:
  • 1 24-pin ATX power connector
  • 1 4-pin ATX 12V power connector
  • 1 floppy connector
  • 1 IDE connector
  • 4 SATA 3Gb/s connectors
  • 1 CPU fan connector
  • 1 system fan connector
  • 1 front panel connector
  • 1 front audio connector
  • 1 CD In connector
  • 1 SPDIF In/Out connector
  • 2 USB 2.0/1.1 connectors for additional 4 ports by cables
  • 1 COMB connector
  • 1 Chassis Intrusion connector
  • 1 power LED connector
  • 1x 24pin Main Power
  • 1x 4pin 12V CPU Power

• BIOS:
  • 1 4 Mbit flash ROM
  • Use of licensed AWARD BIOS
  • Supports Virtual Dual BIOS
  • PnP 1.0a, DMI 2.0, SM BIOS 2.3, ACPI 1.0b.

• Special Features:
  • Supports @BIOS
  • Supports Download Center
  • Supports Q-Flash
  • Supports EasyTune Center
  • Supports Xpress Install
  • Supports Xpress Recovery2
  • Supports Virtual Dual BIOS (Xpress BIOS Rescue)

• Hardware Monitoring:
  • System voltage detection
  • CPU temperature detection
  • CPU / System fan speed detection
  • CPU warning temperature
  • CPU / System fan failure warning
  • CPU smart fan control

Motherboard Specifications

• Model:

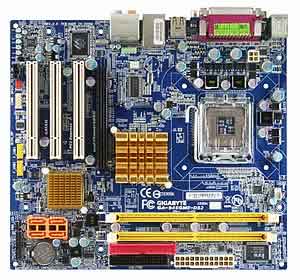

  • Gigabyte GA-945GME-DS2 (rev. 2.0)

• Processor Support:
  • Socket 775
  • Support Intel Core 2 Extreme/ Core 2 Duo/ Pentium D/ Pentium 4/ Celeron D Processors

• Chipset:
  • Intel 945G

• FSB:
  • 1066/800/533 MHz

• Memory:
  • 2x 240pin DDR2-667/533/400 DIMMs
  • Dual Channel
  • Max Capacity 2GB

• Expansion Slots:
  • 1x PCI-Express x16 Slot
  • 3x PCI Slots

• On-Board Video:
  • Integrated Intel GMA950 Graphics Controller

• On-Board Audio:
  • Realtek ALC888 8-Channel High Definition Audio CODEC

• On-Board LAN:
  • Marvell 8001 Gigabit Ethernet Controller

• Storage:
  • 1x ATA-100 Channel
  • 4x SATA2 Ports

• Rear Panel I/O Ports:
  • 1 PS/2 keyboard port
  • 1 PS/2 mouse port
  • 1 parallel port
  • 1 serial port (COMA)
  • 1 VGA port
  • 4 USB 2.0/1.1 ports
  • 1 RJ-45 port
  • 6 audio jacks (Line In / Line Out / MIC In/Surround Speaker Out (Rear Speaker Out)/Center/Subwoofer Speaker Out/Side Speaker Out)

• Form Factor:
  • Micro ATX
  • 9.6" 8.7"
