• Internal I/O Interface:
  • 1 24-pin ATX power
  • 1 4-pin ATX 12V power connector
  • 1 floppy connector
  • 1 IDE connector
  • 6 SATA 3Gb/s connectors
  • 1 CPU fan connector
  • 1 system fan connector
  • 1 front panel connector
  • 1 front audio connector
  • 1 CD In connector
  • 3 USB 2.0/1.1 connectors for additional 6 ports by cables
  • 1 SPDIF In connector
  • 1 power LED connector
  • 1 Chassis Intrusion connector

• BIOS:
  • 1 4 Mbit flash ROM
  • Use of licensed AWARD BIOS
  • Supports Virtual Dual BIOS
  • PnP 1.0a, DMI 2.0, SM BIOS 2.3, ACPI 1.0b.

• Special Features:
  • Supports RAID 0, 1, JBOD (2 ports with RAID function supported by GIGABYTE SATA2)
  • Supports @BIOS
  • Supports Download Center
  • Supports Q-Flash
  • Supports EasyTune 5
  • Supports Xpress Install
  • Supports Xpress Recovery2
  • Supports Virtual DualBIOS

• Hardware Monitoring:
  • System voltage detection
  • CPU / System temperature detection
  • CPU / System fan speed detection
  • CPU warning temperature
  • CPU / System fan failure warning
  • CPU Smart Fan Control

Motherboard Specifications

• Model:

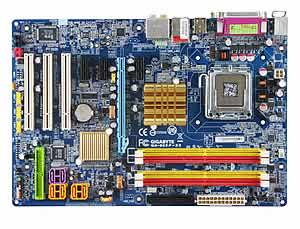

  • GA-965P-S3 (rev. 1.0)

• Processor Support:
  • Socket 775
  • Supports Intel ® Core2 Extreme Quad-Core / Core2 Duo / Intel ® Pentium ® D processor

• Chipset:
  • Intel ® P965 Express Chipset

• FSB:
  • 1066/800/533 MHz

• Memory:
  • 4x 240pin DDR2-800/667/533 DIMMs
  • Dual Channel, unbuffered
  • Max capacity 8GB

• Expansion Slots:
  • 1x PCI Express x16 slot
  • 3x PCI Express x1 slots
  • 3x PCI slots

• On-Board Audio:
  • Realtek ALC883 8 Channel High Definition Audio CODEC

• On-Board LAN:
  • Marvell 88E8056 phy (10/100/1000 Mbit) Gigabit LAN

• Storage:
  • 1x ATA-133 channel
  • 2x SATA2 ports support RAID 0, 1, and JBOD (GIGABYTE SATA2 controller)
  • 4x SATA2 ports (Intel ICH8)

• Rear Panel I/O Ports:
  • 1 PS/2 keyboard port
  • 1 PS/2 mouse port
  • 1 SPDIF Out connection (coaxial+optical)
  • 1 parallel port
  • 4 USB 2.0/1.1 ports
  • 1 serial port (COMA)
  • 1 RJ-45 port
  • 6 audio jacks (Line In / Line Out / MIC In/Surround Speaker Out (Rear Speaker Out)/Center/Subwoofer Speaker Out/Side Speaker Out)

• Form Factor:
  • ATX Form Factor
  • 12 x 8.4 inches
