• Rear Panel I/O Ports:
  • 1 x PS/2 Keyboard
  • 1 X PS/2 Mouse
  • 1 x IEEE 1394a ports
  • 1 x VGA
  • 1 x optical S/PDIF Out connector
  • 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)
  • 1x DVI-D Port
  • 1x HDMI Port
  • 4 x USB
  • 1 x RJ 45 Port


• On-Board LAN:
  • Realtek RTL8110 Gigabit Ethernet


• Management:
  • CPU / System temperature detection
  • CPU / System fan speed detection
  • CPU warning temperature
  • CPU / System fan failure warning
  • CPU Smart Fan Control

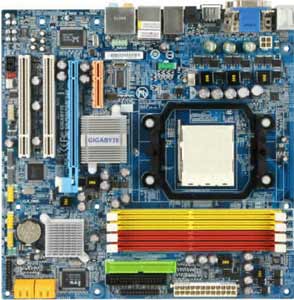

Gigabyte GA-MA69GM-S2H Motherboard

• Model:
  • Gigabyte GA-MA69GM-S2H Motherboard

• Processor Support:
  • Support for Socket AM2+/ AM2 processors: AMD PhenomFX processor/ AMD Phenom processor/ AMD Athlon 64 FX processor/AMD Athlon 64 X2 Dual-Core processor/AMD Athlon 64 processor/AMD Sempron processor
  • (Note) If you install AMD AM2+ CPU on AM2 motherbord, the system bus speed will downgrade from HT3.0(5200MHz) to HT1.0(2000 MT/s) spec; however, the frequency of AM2+ CPU will not be impacted. Please refer "CPU Support List" for more information.

• FSB:
  • 2000 MT/s


• Chipset:
  • AMD 690G

• Memory:
  • 4 DDR2 DIMM memory slots
  • Supports dual channel DDR2 800/667/533/400 DIMMs
  • Supports 1.8V DDR2 DIMMs


• Expansion Slots:
  • 1 PCI Express x 16 slot
  • 1 x PCI Express X4
  • 2 x 32-bit 33MHz PCI


• Storage:
  • 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
  • 4 x SATA 3Gb/s connectors (SATAII0, SATAII1, SATAII2, SATAII3) supporting up to 4 SATA 3Gb/s devices
  • Support for SATA RAID 0, RAID 1 and RAID 0+1


• Audio:
  • Integrated ALC889A 8-Channel High Definition audio with 106 dB Signal to Noise ratio, fully support Blu-ray/ HD DVD playback


• Video:
  • ATI Radeon X1250-based Graphics Controller


• Firewire:
  • T.I. TSB43AB23 chip
  • Up to 3 IEEE 1394a ports


• BIOS:
  • AWARD BIOS
  • 2 x 4 Mbit flash
  • Support for Dual BIOS
  • PnP 1.0a, DMI 2.0, SM BIOS 2.3, ACPI 1.0b


• Form Factor:
  • Micro ATX form factor
  • 24.4cm x 24.4cm
