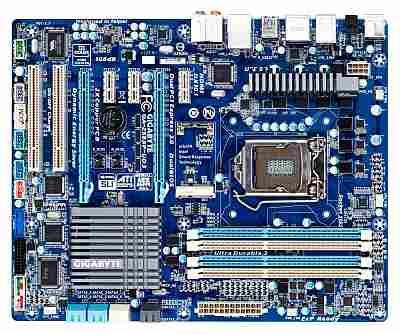

Gigabyte GA-Z68XP-UD3 Motherboard

• Storage:
  • Chipset:
    2 x SATA 6Gb/s connectors (SATA3_0~SATA3_1) supporting up to 2 SATA 6Gb/s devices
    4 x SATA 3Gb/s connectors (SATA2_2~SATA2_5) supporting up to 4 SATA 3Gb/s devices
    * The SATA2_5 connector will become unavailable when the mSATA connector is installed with a solid state drive.
    Support for RAID 0, RAID 1, RAID 5, and RAID 10
    * When a RAID set is built across the SATA 6Gb/s and SATA 3Gb/s channels, the system performance of the RAID set may vary depending on the devices being connected.
  • 1 x Marvell 88SE9172 chip:
    2 x SATA 6Gb/s connectors (GSATA3_6, GSATA3_7) supporting up to 2 SATA 6Gb/s devices
    Support for SATA RAID 0 and RAID 1

• Rear Panel I/O Ports:
  • 1 x PS/2 keyboard/mouse port
  • 1 x HDMI port
  • 1 x optical S/PDIF Out connector
  • 1 x IEEE 1394 port
  • 8 x USB 2.0/1.1 ports
  • 2 x USB 3.0/2.0 ports
  • 1 x RJ-45 port
  • 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)

• Internal I/O Interface:
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 4 x SATA 6Gb/s connectors
  • 4 x SATA 3Gb/s connectors
  • 1 x mSATA connector
  • 1 x CPU fan header
  • 2 x system fan headers
  • 1 x power fan header
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x S/PDIF Out header
  • 3 x USB 2.0/1.1 headers
  • 1 x USB 3.0/2.0 header
  • 1 x IEEE 1394a header
  • 1 x serial port header
  • 1 x clearing CMOS jumper
  • 1 x Trusted Platform Module (TPM) header
• BIOS:
  • 2 x 32 Mbit flash
  • Use of licensed AWARD BIOS
  • Support for DualBIOS
  • PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b

• Hardware Monitoring:
  • System voltage detection
  • CPU/System temperature detection
  • CPU/System/Power fan speed detection
  • CPU overheating warning
  • CPU/System/Power fan fail warning
  • CPU/System fan speed control
    * Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install.

• Bundle Software:
  • Norton Internet Security (OEM version)
  • Intel ® Smart Response Technology
  • LucidLogix Virtu
    * Make sure the monitor cable has been connected to the integrated graphics port on the back panel.

Motherboard Specifications

• Model:
  • Gigabyte GA-Z68XP-UD3 Motherboard

• Processor Support:
  • Support for Intel ® Core i7 processors/Intel ® Core i5 processors/ Intel ® Core i3 processors/Intel ® Pentium ® processors/Intel ® Celeron ® processors in the LGA1155 package
  • L3 cache varies with CPU
    (Some Intel ® Core processors require a graphic card, please refer "CPU support List" for more information.)
• Chipset:
  • Intel ® Z68 Express Chipset
• Memory:
  • 4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory
    * Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
  • Dual channel memory architecture
  • Support for DDR3 2133/1866/1600/1333/1066 MHz memory modules
  • Support for non-ECC memory modules
  • Support for Extreme Memory Profile (XMP) memory modules
    (Please refer "Memory Support List" for more information.)

• Expansion Slots:
  • 1 x PCI Express x16 slot, running at x16 (PCIEX16)
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  • 1 x PCI Express x16 slot, running at x8 (PCIEX8)
    * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot will operate at up to x8 mode.
    (All PCI Express x16 slots conform to PCI Express 3.0 standard.)
    * To support PCI Express 3.0, you must install an Intel 22nm CPU.
  • 3 x PCI Express x1 slots
    (All PCI Express slots conform to PCI Express 2.0 standard.)
  • 2 x PCI slots
• On-Board Video:
  • Integrated Graphics Processor:
    1 x HDMI port, supporting a maximum resolution of 1920x1200
  • Support for AMD CrossFireX / NVIDIA SLI technology
    * The PCIEX16 slot operates at up to x8 mode when AMD CrossFireX/NVIDIA SLI is enabled.

• On-Board Audio:
  • Realtek ALC889 codec
  • High Definition Audio
  • 2/4/5.1/7.1-channel
  • Support for Dolby ® Home Theater
  • Support for S/PDIF Out

• On-Board LAN:
  • 1 x Realtek RTL8111E chip (10/100/1000 Mbit)
• I/O Controller :
  • iTE IT8728 chip

• Operating System:
  • Support for Microsoft ® Windows ® 8/7/Vista/XP
• Special Features:
  • Support for @BIOS
  • Support for Q-Flash
  • Support for Xpress BIOS Rescue
  • Support for Download Center
  • Support for Xpress Install
  • Support for Xpress Recovery2
  • Support for EasyTune
    * Available functions in EasyTune may differ by motherboard model.
  • Support for Dynamic Energy Saver 2
  • Support for Smart 6
  • Support for Auto Green
  • Support for eXtreme Hard Drive (X.H.D)
  • Support for ON/OFF Charge
  • Support for Cloud OC
  • Support for 3TB+ Unlock
  • Support for TouchBIOS
  • Support for Q-Share
• Form Factor:
  • ATX Form Factor
  • 30.5cm x 24.4cm (12 Inch x 9.6 Inch)
