• Rear Panel I/O Ports:
  • 1 x PS/2 Keyboard
  • 1 X PS/2 Mouse
  • 1 X VGA connector
  • 1 x Audio headers
  • 1 x Serial
  • 1 x Parallel
  • 4 x USB 2.0 Ports
  • 1 x RJ 45 Port


• Management:
  • ACPI Power Management
  • Wake-On-LAN (WOL)
  • Power On LAN
  • AC Power Failure Recovery

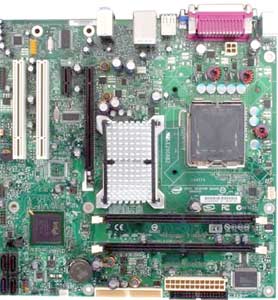

Intel D946GZISSL Motherboard

• Model:
  • Intel D946GZISSL Motherboard

• Processor Support:
  • Support Intel Core 2 Duo/ Pentium Dual-Core/ Pentium 4/ Celeron 400 Series Processor
  • Socket LGA775


• FSB:
  • 1333/1066/800 MHz


• Chipset:
  • Intel ® 946GZ

• Memory:
  • Two240-pin DDR2 SDRAM Dual Inline Memory Module (DIMM) sockets
  • Support for DDR2 667 or DDR2 533 MHz DIMMs
  • Support for up to 4 GB of system memory


• Expansion Slots:
  • 1 PCI-E 16x
  • 1 PCI-E 1x
  • 2 PCI 32-bit/33 MHz


• Storage:
  • One channel supporting up to two IDE devices
  • Four Serial ATA 3.0 Gbps ports


• Video:
  • Intel® GMA 3000 onboard graphics subsystem


• Audio:
  • 6-channel (5.1) audio subsystem using the ADI1988A (or SigmaTel STAC9227) audio codec


• On-Board LAN:
  • LAN Support 10/100 Mbits/sec LAN subsystem using the Intel® 82562G Platform


• BIOS:
  • Intel ® BIOS (resident in the SPI Flash device)
  • Support for Advanced Configuration and Power Interface (ACPI), Plug and Play,and SMBIOS


• Form Factor:
  • Micro ATX, 9.6 x 9.6 inch / 24.3 x 24.3 cm
