• Rear Panel I/O Ports:
  • 1 PS/2 Mouse
  • 1 Ps/2 Keyboard
  • 1 VGA port
  • 1 x Audio headers
  • 4x USB 2.0 Ports
  • 1 x RJ 45 Port


• Video:
  • Intel ® Graphics Media Accelerator 3100 onboard graphics subsystem


• Management:
  • ACPI Power Management
  • Wake-On-LAN (WOL)
  • Power On LAN
  • AC Power Failure Recovery

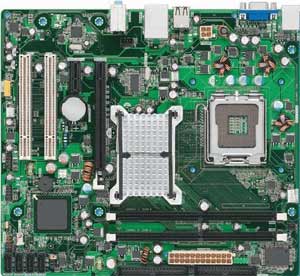

Intel DG31PR Motherboard

• Model:
  • Intel DG31PR Motherboard

• Processor Support:
  • Support Intel Core 2 Quad/ Core 2 Duo/ Pentium Dual-Core/ Celeron 400 Series Processor
  • Socket LGA775


• FSB:
  • 1333/1066/800 MHz


• Chipset:
  • Intel ® G31

• Memory:
  • Two 240-pin DDR2 SDRAM Dual Inline Memory Module (DIMM) sockets
  • Support for DDR2 800 MHz or DDR2 667 MHz DIMMs
  • Support for up to 4 GB of system memory


• Expansion Slots:
  • 1 PCI-E 16x
  • 1 PCI-E 1x
  • 2 PCI 32-bit/33 MHz


• Storage:
  • One channel supporting up to two IDE devices
  • Four SATA (3.0 Gb/s) ports


• Audio:
  • 6-channel (5.1) audio subsystem using the Realtek ALC888 audio codec


• On-Board LAN:
  • Gigabit (10/100/1000 Mbits/sec) LAN subsystem using the Realtek RTL8111-GR Gigabit Ethernet Controller


• BIOS:
  • Intel ® BIOS (resident in the SPI Flash device)
  • Support for Advanced Configuration and Power Interface (ACPI), Plug and Play,and SMBIOS


• Form Factor:
  • MicroATX
  • 9.6 x 8.6 (24.38 cm x 21.84 cm)
