• Rear Panel I/O Ports:
  • 1 x Ps/2 Keyboard
  • 1 x Ps/2 Mouse
  • 1 x VGA port
  • 1 x Firewire
  • 1 x Audio headers
  • 6 x USB 2.0 Ports
  • 1 x RJ 45 Port


• Firewire:
  • 2x IEEE 1394a Ports


• Management:
  • ACPI Power Management
  • Wake-On-LAN (WOL)
  • Power On LAN
  • AC Power Failure Recovery

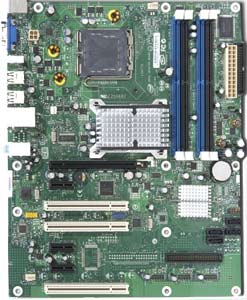

Intel DG33FBC Motherboard

• Model:
  • Intel DG33FBC Motherboard

• Processor Support:
  • Support Intel Core 2 Quad/ Core 2 Duo/ Pentium Dual-Core/ Celeron 400 Series Processor
  • Socket LGA775


• FSB:
  • 1333/1066/800 MHz


• Chipset:
  • Intel ® G33

• Memory:
  • Four 240-pin DDR2 SDRAM Dual Inline Memory Module (DIMM) sockets
  • Support for DDR2 800 MHz or DDR2 667 MHz DIMMs
  • Support for up to 8 GB of system memory


• Expansion Slots:
  • 1 PCI-E 16x
  • 3 PCI-E 1x
  • 3 PCI 32-bit/33 MHz


• Storage:
  • One channel supporting up to two IDE devices
  • Four Serial ATA (3 Gbps) interfaces


• Audio:
  • 6-channel (5.1) audio subsystem using the Realtek ALC888 audio codec


• On-Board LAN:
  • Gigabit (10/100/1000 Mbits/sec) LAN subsystem using the Intel ® 82566DC Gigabit Ethernet Controller


• Video:
  • Intel ® Graphics Media Accelerator 3100 onboard graphics subsystem with Intel ® Clear Video Technology


• BIOS:
  • Intel ® BIOS (resident in the SPI Flash device)
  • Support for Advanced Configuration and Power Interface (ACPI), Plug and Play,and SMBIOS


• Form Factor:
  • ATX
  • 11.6 x 9.6 inch
