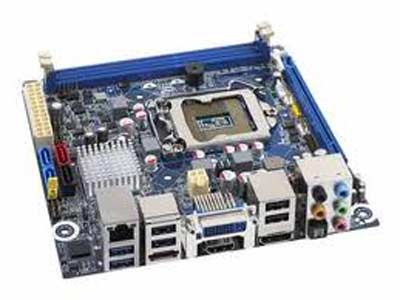

Intel DH67CF Motherboard

• Storage:
  • 2 SATA 6.0 Gb/s
  • 2 SATA 3.0 Gb/s
  • 1 e-SATA 3.0 Gb/s


• Rear Panel I/O Ports:
  • Two Serial ATA   6.0 Gb/s ports
  • Two Serial ATA 3.0 Gb/s ports, with one port compatible with eSATA* extension
  • One eSATA3.0 Gb/s port
  • Two SuperSpeed USB 3.0 ports
  • Ten USB 2.0 ports, four back panel ports and six additional ports via three internal headers
  • Consumer Infrared Headers: YES
  • Audio (back channel + front channel): 8+2
  • S/PDIF Out Connector: 1


• BIOS:
  • ID String: BLH6710H.86A with Intel Fast Boot Technology

• Special Features:
  • Intel ® HD Audio Technology: YES
  • Intel ® Rapid Storage Technology: YES


Motherboard Specifications

• Model:
  • Intel DH67CF Motherboard


• Processor Support:
  • Intel ® Core i5“2000 processor series (65W TDP) in an LGA1155 socket
  • Intel ® Core i3“2000 processor series (65W TDP) in an LGA1155 socket

• Chipset:

  • Intel ® H67 Express Chipset

  • Intel ® Rapid Storage Technology for RAID 0, 1, 5 and 10

• Memory:
  • Two 240-pin DDR3 SDRAM Dual Inline Memory Module (DIMM) sockets
  • Support for DDR3 1333/1066 MHz DIMMs
  • Support for up to 16 GB of system memory
  • Memory Channels: 2


• Expansion Slots:
  • One PCI Express* 2.0 x 16 discrete graphics card connector

• On-Board Video:
  • Integrated graphics support for processors with Intel ® Graphics Technology: High Definition Multimedia Interface* (HDMI*), DVI-I DisplayPort*
  • Discrete graphics support for PCI Express* 2.0 x16 add-in graphics card
  • Integrated Graphics: YES
  • Intel ® Clear Video Technology: YES
  • Dual Display Capable: YES
  • Requires a Processor with Intel Graphics Technology: YES


• On-Board Audio:
  • Intel ® High Definition Audio subsystem in the following configuration: 10-channel (7.1+ 2 independent multi-streaming) audio subsystem with six analog audio outputs w/optical S/PDIF out port
  • Five analog audio ports and one optical S/PDIF out port
  • Internal S/PDIF header and front panel audio header

• On-Board LAN:
  • Gigabit (10/100/1000 Mb/s) LAN subsystem using the Intel ® 82579V Gigabit Ethernet Controller

• Form Factor/Dimensions:
  • Mini-ITX
  • 6.7" x 6.7"
