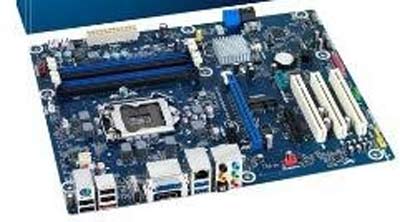

Intel DH77KC Motherboard

• Storage:
  • 2 SATA 6.0 Gb/s
  • 3 SATA 3.0 Gb/s
  • 1 e-SATA 3.0 Gb/s
  • Raid Configuration: 0,1,5,10

• Rear Panel I/O Ports:
  • Two Serial ATA 6Gb/s ports
  • Three Serial ATA 3Gb/s ports
  • One eSATA 3Gb/s port
  • Ten USB 2.0 Ports , four back panel ports, four ports via internal headers, and two ports via Mini PCI
  • Express* connector Four USB 3.0 Ports , two back panel ports, and two additional ports via internal headers
  • Five analog audio outputs and one optical S/PDIF out port
  • Internal S/PDIF header and front panel audio header
  • Parallel Port via Internal Header: YES
  • Serial Port via Internal Header: YES
  • Audio (back channel + front channel): 8+2
  • S/PDIF Out Connector: 2
  • # of PS2 Ports: 1


• BIOS:
  • ID String: KCH7710H.86A

• Special Features:
  • Intel ® Clear Video Technology: YES
  • Dual Display Capable: YES
  • Requires a Processor with Intel Graphics Technology: YES
  • Intel ® HD Audio Technology: YES
  • Intel ® Rapid Storage Technology: YES


Motherboard Specifications

• Model:
  • Intel DH77KC Motherboard


• Processor Support:
  • Intel ® Core i7 processor series in an LGA1155 socket
  • Intel ® Core i5 processor series in an LGA1155 socket

• Chipset:
  • Intel ® H77 Express Chipset with Intel ®  Rapid Storage Technology

• Memory:
  • Four 240-pin DDR3 SDRAM Dual Inline Memory Module (DIMM) sockets
  • Support for DDR3 16001/1333/1066 MHz DIMMs
  • Support for up to 32 GB of system memory

• Expansion Slots:
  • One PCI Express 3.0 x 16 discrete graphics card connecto
  • One PCI Express 2.0 x 1 connector
  • One PCI Express 2.0 x 4 connector
  • Three PCI Conventional* bus connectors
  • One PCI Express Mini Card connector with support for mSATA Solid-State Drive

• On-Board Video:
  • DVI-I, HDMI, and DisplayPort for processors with Intel ® HD Graphics
  • Support for PCI Express 3.0 x16 add-in graphics card2

• On-Board Audio:
  • Intel ® High Definition Audio3  subsystem in the following configuration: 10-channel (7.1+2 independent multi-streaming) audio subsystem using the Realtek* ALC892 audio codec

• On-Board LAN:
  • Gigabit (10/100/1000 Mbits/sec) LAN subsystem using the Intel ®  82579V Gigabit Ethernet Controller

• Form Factor/Dimensions:
  • ATX
  • 12" x 9.6"
