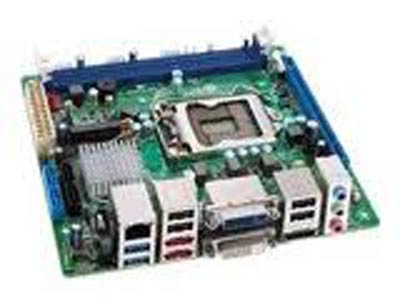

Intel DQ67EP Motherboard

• Storage:
  • 2 SATA 6.0 Gb/s
  • 2 SATA 3.0 Gb/s
  • 2 e-SATA 3.0 Gb/s

  • RAID Configuration: 0,1,5,10

• Rear Panel I/O Ports:
  • Two SuperSpeed USB 3.0 ports
  • Up to eight USB 2.0 ports
  • Two SATA 6.0 Gb/s port
  • Two SATA 3.0 Gb/s ports
  • Two eSATA 3.0 Gb/s rear ports
  • Serial Port via Internal Header: YES
  • # of Serial Ports: 1
  • Audio (back channel + front channel): 6+2
  • S/PDIF Out Connector: 1


• BIOS:
  • ID String: SWQ6710H.86A

• Special Features:
  • Energy Star: YES
  • Intel ® Virtualization Technology for Directed I/O (VT-d): YES
  • Intel ® Trusted Execution Technology: YES
  • AES New Instructions: YES
  • Intel ® vPro Technology: YES
  • Intel ® Active Management Technology: YES
  • Intel ® AMT Version: 7.0
  • TPM: YES
  • Intel ® TPM Version: 1.2
  • Intel ® HD Audio Technology: YES
  • Intel ® Matrix Storage Technology: YES
  • Intel ® Rapid Storage Technology: YES


Motherboard Specifications

• Model:
  • Intel DQ67EP Motherboard


• Processor Support:
  • Intel ® Core i5 vPro processor series in an LGA1155 socket
  • Max TDP: 65W
  • Extended Life Program (XLP): YES


• Chipset:

  • Intel ® Q67 Express Chipset

• Memory:
  • Two 240-pin DDR3 SDRAM Dual Inline Memory Module (DIMM) sockets
  • Support for DDR3 1333 /1066 MHz DIMMs
  • Support for up to 16 GB of system memory
  • Memory Channels: 2


• Expansion Slots:
  • One PCI Express* 2.0 x 16 bus add-in card connector
  • One mini-PCI Express connector (half length support)

• On-Board Video:
  • DisplayPort*, DVI-D, DVI-I graphics connectors for processors with Intel ® HD Graphics
  • Integrated Graphics: YES
  • Graphics Output: DP DVI-I DVI-D
  • Intel ® Clear Video Technology: YES
  • Dual Display Capable: YES
  • Requires a Processor with Intel Graphics Technology: YES


• On-Board Audio:
  • Intel ® High Definition Audio (Intel ® HD Audio) subsystem in the following configuration: 8-channel (5.1+ 2 independent multi-streaming) audio subsystem with three analog audio outputs using the Realtek ALC888* audio codec

• On-Board LAN:
  • Gigabit (10/100/1000 Mbs/s) LAN subsystem using the Intel ® 82579LM Gigabit Ethernet Controller

• Form Factor/Dimensions:
  • Mini-ITX
  • 7" x 7"
