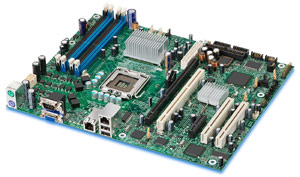

Intel S3000AHLX Motherboard
Intel ® Xeon ® processor 3000 sequence, Intel ® Pentium ® Extreme Edition, Intel ® Pentium ® D Processor, Intel ® Pentium ® 4 Processor, Intel ® Celeron ® D Processor in the Intel ® LGA775 package, Intel ® 3000 chipset, 1 PCI-E x1, 1 PCI-X 133 Mhz, 2 PCI 32 bits, One Intel ® Adaptive Slot supporting PCI Express x 8 or PCI-X 64-bit/133 MHz, DDR2, Dual LAN, USB, SATA2, RAID, Video, ATX Form Factor |
|
- Internal I/O Interface:
- 2 USB 2.0 ( pin-out)
- 1 IDE Port
- 4 Sata2 Ports
- Rear Panel I/O Ports:
- 1 PS/2 Mouse
- 1 Ps/2 Keyboard
- 1 x Serial Port
- 1 x VGA Port
- 2 x USB 2.0 Ports
- 2 x RJ 45 Port
- Video:
- ATI ES1000 video controller
- 16 MB of video memory
- On-Board LAN:
- Intel 82573E/V & 82541PI Gigabit Ethernet Controllers
- Supports 10BASE-T, 100BASE-TX, and 1000BASE-T
- Management:
- Intel ® Server Management family of software; upgradeable via custom add-in card to support Intel ® Management Module
- Intel ® Management Module Professional Edition, Advanced Edition Support
- ACPI Power Management
- Wake-On-LAN (WOL)
- Power On LAN
- AC Power Failure Recovery
- Intel ® Server Management family of software
|
Intel S3000AHLX Motherboard
- Model:
- Intel S3000AHLX Motherboard
- Processor Support:
- Supports Multi-Core Intel ® Xeon ® Processor 3000 Sequence, Intel ® Pentium ® Extreme Edition, Intel ® Pentium ® D, Intel ® Pentium ® 4, Intel ® Celeron ® D processors.
- Supports Intel ® Extended Memory System 64 Technology (Intel ® EM64T)
- Supports Hyper-Threading Technology
- FSB:
- Chipset:
- Memory:
- Four DIMM sockets supporting DDR2 533/667MHz DIMMs
- Data bandwidth per channel of 4.2GB/s or 8.4GB/s in dual channel when using
DDR2 667MHz
- Support for up to two DDR2 channels for a total of four DIMMs (2 DIMMs / c hannel) providing up to 8-GB max memory capacity.
- Support for 512-MB, 1-GB and 2-GB DRAM modules
- Expansion Slots:
- 1 PCI Express x1
- 1 PCI-X 64 Bits/133 Mhz
- Two PCI 32-bit/33 MHz
- One Intel ® Adaptive Slot supporting PCI Express* x 8 or PCI-X 64-bit/133 MHz
- Storage:
- One channel supporting up to two IDE devices
- Four independent SATA2 ports support data transfer rates up to 3.0 Gb/s (300MB/s) perport
- Support RAID 0,1 & 10
- BIOS:
- AMI* BIOS, Multiboot BBS (BIOS Boot Specification)
- SMBIOS 2.3.1; Below 1MB in memory
- Plug and Play
- ACPI 2.0, IPMI, DMI, CIM, SNMP, ICMB
- Form Factor:
- ATX form factor, 12 x 9.6 inch / 30.5 x 24.4 cm
|
