• Rear Panel I/O Ports:
  • 1 x PS/2 keyboard
  • 1 x PS/2 Mouse
  • 1 x Serial port
  • 1 VGA port
  • 2 x USB 2.0 Ports
  • 1 x RJ 45 Port


• Video:
  • internal Intel ®MCH module that includes an integrated graphics engine supporting standard SVGA drivers with analog display capabilities
  • 8 MB of memory pre-allocated in the main memory to support the internal graphics device


• Management:
  • Integrated Management Onboard Platform Instrumentation
  • Software Support Intel ®Server Manager 8 family of software
    Supported Standard IPMI 1.5
  • ACPI Power Management
  • Wake-On-LAN (WOL)
  • Power On LAN
  • AC Power Failure Recovery


• Form Factor:
  • ATX
  • 12" x 9.6" (305 mm x 244 mm)

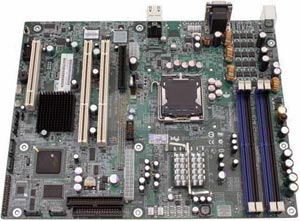

Intel SE7221BK1-E Motherboard

• Model:
  • Intel SE7221BK1-E Motherboard

• Processor Support:
  • Supports one Intel ® Pentium ® 4 processor with 1 MB of integrated L2 cache
  • LGA 775


• FSB:
  • 800MHz


• Chipset:
  • Intel E7221

• Memory:
  • Four DIMM sockets serviced by dual memory channels for up to 4 GB of ECC DDR2 400/533 memory
  • Memory can be implemented with either single-sided (one row) or double-sided (two row) DIMMs, Unbuffered ECC or standard DDR2 400/533 SDRAM 72-bit, 240-pin gold-plated DIMMs, Voltage 2.5V only
  • Corrects single-bit errors, detects multiple-bit errors (using ECC memory) supports Intel ® x4 Single Device Data Correction (SDDC), scrubbing, retry on uncorrectable errors


• Expansion Slots:
  • 1x PCI-Express x8 slot
  • 2x 100MHz PCI-X slots
  • 1x 32-bit/33MHz PCI slot


• Storage:
  • Parallel ATA Single-channel ATA 100 supporting up to two IDE devices
  • Serial ATA Four SATA 150 connectors wit h integrated Zero Channel RAID support in the BIOS
  • RAID 0,1, and 10 supported for SATA disks


• On-Board LAN:
  • Intel ® Server Network Dual integrated Intel ® 82541PI Gigabit Connections Ethernet controllers supporting 10BASE-T,100BASE-TX, and 1000BASE-T
  • One RJ45 connectors for CAT6 TP cable


• BIOS:
  • 8Mb Flash EEPROM with AMI* BIOS
  • Multiboot BBS (BIOS Boot Specification) 1.4“compliant
  • Features: Flashable, setup utility available, Plug and Play, IDE drive autoconfigure, SMBIOS 2.3.1; ECC/Parity support, multilingual support, enabled for rolling/online BIOS updates
  • Configuration Utilities Server Configuration Wizard for system
    setup of initial Intel Server Management configuration
