• Rear Panel I/O Ports:
  • 1 x PS/2 keyboard
  • 1 x PS/2 Mouse
  • 4 x USB 2.0 Ports
  • 1x Firewire port
  • 1 Parallel port supports SPP/EPP/ECP mode
  • 1 x RJ 45 Port
  • 1 6-in-1 audio jack (S/SPDIF out)


• Audio:
  • High Definition link controller integrated in Intel ICH7DH chip
  • 8 channels audio codec Realtek 882M
  • Support Universal Audio Jack (only Front Audio Jack)
  • Compliance with Azalia 1.0 spec


• On-Board LAN:
  • Intel PC82573 PCI-Express Gb LAN Controller


• Firewire:
  • VIA 6308P chipset
  • Supports up to one 1394 ports (Rear panel x 1)
  • Transfer rate up to 400Mbps


• Form Factor:
  • ATX Form Factor, 12in.(L) x 9.65in.(W)

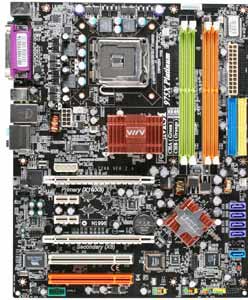

MSI 975X Platinum Motherboard

• Model:
  • MSI 975X Platinum Motherboard

• Processor Support:
  • Supports Socket 775 for Intel Core2 Duo, Pentium 4 (Prescott, P4EE), Pentium D, Pentium XE/Celeron D processors in LGA 775 package
  • Supoprts Intel 05B/05A and 04B/04A processors
  • Supports Intel Hyper-Threading technology
  • Supports EIST techonology
  • Supports Intel Dual Core Technology to 1066MHz and up


• FSB:
  • Support FSB 533 MHz, 800MHz & 1066MHz


• Chipset:
  • Intel® 975X

• Memory:
  • Supports 4 unbuffered DIMM of 1.8 Volt DDR2 SDRAM
  • Supports up to 8GB 533/667/800MHz memory size
  • Support Dual Channel DDR2 533/677/800MHz and up


• Expansion Slots:
  • Two PCI Express 16X slots (PCI Express Bus SPEC V1.0a compliant)(When running Cross-Fire technology, dual 16X slots run at dual 8X speed)
  • Two PCI Express 1X slot (PCI Express Bus SPEC V1.0a compliant)
  • Two PCI 2.3 32-bit Master PCI Bus slots. (support 3.3v/5v PCI bus interface)


• Storage:
  • One Ultra DMA 66/100/133 IDE controller integrated in ICH7DH and JMicron JMB361
  • Supports PIO, Bus Master operation modes
  • Can connect up to 2 Ultra ATA 100 drives on IDE1 & 2 Ultra ATA133 drives on IDE2 (powered by JMicron JMB361 controller)
  • Serial ATAII controller integrated in ICH7DH
  • Up to 300MB/s transfer speed
  • Can connect up to 4 Serial ATA II drives
  • Supports ACHI controller with SATAII RAID 0, 1, and 0+1
  • Supports SATAII hot plug
  • JMicron JMB361 chipset
  • Supports RAID 0, 1 and JBOD (onboard SATA5 & IDE2 connector)
  • Can connect up to 2 Ultra ATA 133 drives on IDE2 & 2 SATA drives on SATA5


• BIOS:
  • The mainboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.
  • The mainboard provides a Desktop Management Interface(DMI) function which records your mainboard specifications.
