• Storage:
  • Dual IDE controllers on the nVIDIA ® nForce4-4X chipset provides IDE HDD/CDROM with PIO, Bus Master and Ultra DMA 133/100/66 operation modes.
  • Can connect up to 4 IDE devices.
  • Supports 4 SATA ports with up to 150MB/s transfer rate.

• NV RAID (Software):
  • Supports up to 4 SATA and 4 ATA133 Hard drives
  • RAID 0, 1, 0+1, or JBOD supported
  • RAID function available for PATA133 + SATA H/D drives

• Rear Panel I/O Ports:
  • 1 x Parallel
  • 1 x Serial port (COM 1)
  • 1 x PS/2 Keyboard
  • 1 x PS/2 Mouse
  • 1 x Audio I/O (Line-in/Line-out/MIC)
  • 4 x USB 2.0
  • 1 x RJ45 LAN Jack

• Internal I/O Interface:
  • ATX 24-Pin power connector
  • CPU / NB / System FAN connectors
  • 4-pin ATX 12V power connector
  • 1 x Floppy disk drive connector
  • 2 x ATA133 HD connectors
  • Front panel audio connector
  • Front USB connectors: JUSB1, JUSB2, JUSB3 connector support additional 6 ports
  • Serial port header
  • CD-in connector
  • Chassis intrusion switch connector

• BIOS:
  • Award BIOS
  • The mainboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically
  • The mainboard provides a Desktop Management Interface(DMI) function which records your mainboard specifications.

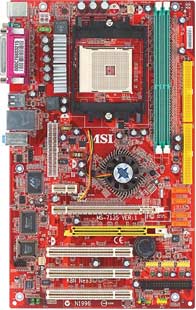

Motherboard Specifications

• Model:
  • K8N Neo3 H, MS-7135

• Processor Support:
  • Supports 64-bit AMD ® Athlon 64, Sempron and Turion64 processor (Socket 754)
  • Supports up to 3200+, 3400+, 3700+ or higher CPU

• Chipset:
  • NVIDIA ® nForce4-4X Chipset
  • HyperTransport link to the AMD Athlon 64 CPU

• FSB:
  • 800 MHz

• Memory:
  • Supports single channel, four-memory-bank DDR 333/400 using two 184-pin DDR DIMMs
  • Supports a maximum memory size up to 2GB without ECC
  • Supports 2.5v DDR SDRAM DIMM

• Expansion Slots:
  • One PCI Express x16 slot (PCI Express Bus specification v1.0a compliant)
  • One PCI Express x1 slot (PCI Express Bus specification v1.0a compliant)
  • Three 32-bit Master 3.3V/5V PCI Bus slots
  • One AGR (Advance Graphics Riser) slot for compatible AGP VGA cards

• USB Ports:
  • Controlled by nForce4-4X chipset
  • 4 ports in the rear I/O, 6 ports via the external bracket

• On-Board LAN:
  • Marvell PHY 88E1111 Gigabit Ethernet chip

• On Board Audio:
  • RealTek ALC655 6 Channel software audio codec
  • - Compliance with AC97 v2.3 Spec.
  • - Meet PC2001 audio performance requirement.

• Form Factor:
  • 30cm(L) x 18.5cm(W) (12" x 7.25")
  • ATX Form Factor
