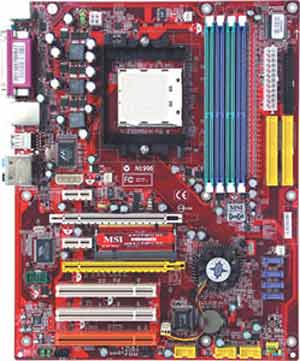

MSI K8N SLI-FI Motherboard
Socket 939 for AMD Athlon 64FX/64
Processor, nVIDIA nForce4 SLI chipset, 4 DDR, 2 PCI Express 16x, 2 PCI
Express 1x, 3 PCI, On-board Audio, LAN, USB, Firewire, SPDIF, RAID,
SATA. ATX form factor. |
|
- Internal I/O Interface:
- 1 floppy port supports 1 FDD
with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes
- 1 serial port
- 1 parallel port supports SPP/EPP/ECP
mode
- 1 audio jack (6-in-1), coaxia
SPDIF out
- 10 USB 2.0 ports (Rear x 4 /
Front x 6)
- 1 RJ45 LAN jack
- 3 IEEE 1394 a connectors (Rear
x 1/ Front x 1)
- Storage:
- An IDE controller on the
NVIDIA ® nForce4 SLI Chipset provides IDE HDD/CD-ROM with PIO,
Bus Master and Ultra DMA133/100/66 operation modes.
- Can connect up to 4 IDE
devices
- NV RAID supports 4 SATA II
ports (SATA1-4). Transfer rate is up to 300MB/s.
- NV RAID (Software)
- Supports up to 4 SATA plus 2
ATA 133 Hard drives
- RAID 0 or 1, 0+1, JBOD is
supported
- RAID function work w/ ATA 133
+ SATA H/D or 2 SATA H/D
- BIOS:
- The mainboard BIOS provides "Plug &
Play" BIOS which detects the peripheral devices and expansion cards of
the board automatically.
- The mainboard provides a Desktop
Management Interface (DMI) function which records your mainboard
specifications.
- Supports boot from LAN, USB Device 1.1
& 2.0 and SATA HDD
- Form Factor:
- 11.96 in (L) x 9.61 in(W)
- ATX Form Factor
|
MSI K8N SLI-FI
Specifications
- Processor Support:
- Supports 64-bit AMD ® Athlon
64FX/64 processor (Socket 939)
- Supports 3000+ (D0), 3200+ (D0),
3500+, 3800+, 4000+, 4400+, 4600+, 4800+, FX53, FX55, FX57, FX60
- Chipset:
- NVIDIA ® nForce4 SLI Chipset
- Memory:
- Supports dual channel DDR
266/333/400, using four 184-pin DDR DIMMs.
- Supports the memory size up to 4GB
- Supports 2.5v DDR SDRAM DIMM
- Expansion Slots:
- Two PCI Express X16 slot (supports
PCI Express Bus specification v1.0a compliant)
- Two PCI Express x1 slots (supports
PCI Express Bus specification v1.0a compliant)
- Three 32-bit v2.3 Master PCI bus
slots, including one orange slot which supports 2 master for MSI
special PCI function card (ex. wireless LAN and bluetooth combo
card)
- On-Board Audio:
- 7.1 channel audio codec RealTek
ALC850
- Compliance with AC97 v2.3 spec
- On-Board LAN:
- LAN supports 10/100/1000 Fast
Ethernet by nForce4 SLI
|
