• Rear Panel I/O Ports:
  • 1 x PS/2 keyboard
  • 1 x PS/2 Mouse
  • 1 COM port stack connector (2 RS-232 ports)
  • 1 VGA/DVI stack connector
  • 1 Tv out
  • 4 x USB 2.0 Ports
  • 2 x RJ 45 Port
  • Audio I/O Jacks


• Form Factor:
  • Mini ITX, 6.7 x 6.7 inch / 17 x 17 cm

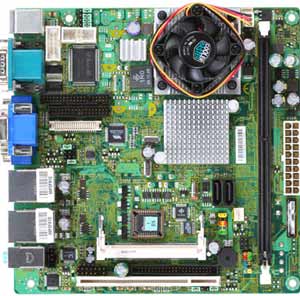

MSI MS-9802 Motherboard

• Model:
  • MSI MS-9802 Motherboard

• Processor Support:
  • VIA C7/ Eden/ Eden ULV processor with nanoBGA2 footprint
  • 3-pin CPU fan pinheader with Smart Fan Speed Control
  • Power SaverTM Technology enabled


• FSB:
  • 400/ 533 MHz


• Chipset:
  • VIA CX700/ CX700M/ CX700M2

• Memory:
  • DDR2 400/533 SDRAM (2GB Max) or ECC DDR2 400 only
  • 1 DDR2 DIMM slot (240pin / 1.8V)


• Expansion Slots:
  • Mini PCI-E Slot X1
  • PCI 32bits Slot X1(0, 3.3, 5V)

• On-Board LAN:
  • 2 PCI Gb LAN by Realtek RTL8110SC


• Storage:
  • 1 IDE Channel with ATA 100/66/33
  • Supports 2 IDE devices
  • 1 CF Type II socket
  • 2 SATA II ports by VIA CX700/ CX700M/ CX700M2
  • Supports storage and data transfers at up to 300MB/s
    Expansion Slots


• Video:
  • AMD LX800 Integrated, Max Shared Memory to 64MB
  • High Resolution CRT & TFT outputs
  • Support Analog CRT output
  • Dual Channel 24 bits LVDS Video Output
  • Support RCA-Out & S-Video Out (640x480 in PAL and NTSC
    mode)


• Audio:
  • Realtek® ALC888 7.1-channel HDA codec
  • 6 watt amplifier


• BIOS:
  • The mainboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.
  • The mainboard provides a Desktop Management Interface(DMI) function which records your mainboard specifications
