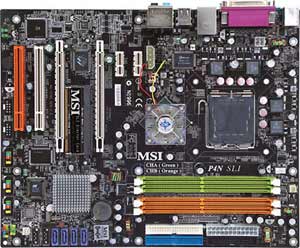

MSI P4N SLI-FI Motherboard
Socket 775 for Intel Pentium 4,
nVIDIA nForce4 SLI chipset, 4 DDR2, 2 PCI Express 16x, 2 PCI, SATA,
RAID, On-board Audio, LAN, USB, Firewire. ATX form factor. |
|
- Internal I/O Interface:
- 1 floppy port supports 1 FDD
with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes
- 1 serial port
- 1 parallel port supports SPP/EPP/ECP
mode
- 1 audio jack (5-in-1),
coaxial/fibre SPDIF out
- 10 USB 2.0 ports (Rear x 4 /
Front x 6)
- 1 RJ45 LAN jack
- 3 IEEE 1394 a connectors (Rear
x 1/ Front x 2)
- Storage:
- An IDE controller on the
NVIDIA MCP04 (for nForce4 SLI Intel Edition) chipset provides
IDE HDD/CD-ROM with PIO, Bus Master and Ultra DMA133/100/66
operation modes.
- Can connect up to 4 IDE devices; supports RAID 0,1,0+1, RAID 5
or JBOD mode.
- MCP04 (for nForce4 SLI Intel
Edition) supports 4 SATA II ports (SATA 1 to 4).
- Transfer rate is up to 300 MB/s
- Supports RAID 0,1,0+1, RAID 5 or JBOD mode.
- NV RAID supports 4 SATA II
ports (SATA1-4). Transfer rate is up to 300MB/s.
- NV RAID (Software)
- Supports up to 4 SATA plus 4 ATA 133 Hard drives
- RAID 0 or 1, 0+1, JBOD is supported
- RAID function work w/ ATA 133 + SATA H/D or 2 SATA H/D
- BIOS:
- The mainboard BIOS provides "Plug &
Play" BIOS which detects the peripheral devices and expansion cards of
the board automatically.
- The mainboard provides a Desktop
Management Interface (DMI) function which records your mainboard
specifications.
- Supports boot from LAN, USB Device 1.1
& 2.0 and SATA HDD
- Form Factor:
- 12 in (L) x 9.61 in(W)
- ATX Form Factor
|
MSI P4N SLI-FI
Specifications
- Processor Support:
- Supports Socket 775 for Intel ® P4,
P4EE, Pentium D, Pentium XE and Celeron D processors.
- Supports Intel ® 05B and 05A
processors
- Supports Intel ® Hyper-Threading
Technology
- FSB:
- Supports FSB 1066/800 MHz
- Chipset:
- NVIDIA ® nForce4 SLI Intel Edition
Chipset
- NVIDIA ® MCP04 (for nForce4 SLI
Intel Edition) Chipset
- Memory:
- Supports dual channel DDR2
533/667, using four 240-pin/1.8V DDR2 DIMMs
- Supports the memory size up to 4GB
- Expansion Slots:
- Two PCI Express X16 slot (supports
PCI Express Bus specification v1.0a compliant)
- Two PCI Express x1 slot (support
PCI Express Bus specification v1.0a compliant)
- Two 32-bit v2.3 Master PCI Bus
slots, one orange slot reserves as communication slot.
- Support 3.3V/5V PCI bus interface
- On-Board Audio:
- Chip integrated by Realtek ALC850
(7.1 ch. S/W audio)
- Compliant with AC'97 2.3 spec.
- On-Board LAN:
- Supports dual LAN jacks
- 1st LAN supports 10/100/1000 Fast
Ethernet by nForce4 SLI Intel Edition MCP04 south bridge
|
