• Storage:
  • 1 x Ultra DMA 133/100/66

• Rear Panel I/O Ports:
  • 1 x PS/2 keyboard
  • 1 x PS/2 mouse
  • 1 x Parallel Port
  • 1 x Serial Port
  • 1 x VGA port
  • 4 x USB 2.0 Ports
  • 1 x RJ 45 Port
  • 1 x Audio I/O (Line-in, Line-out and Mic-in)

• Internal I/O Interface:
  • 24-pin ATX Power Supply connector
  • 4-pin ATX 12V power supply connector
  • 2 x USB 2.0 header support additional 4 USB2.0 ports
  • 2 x Serial ATA connectors
  • 1 x Front panel switch/LED header
  • 1 x Front panel audio header
  • CPU / SYS FAN headers
  • 1 x IrDA for SIR header
  • 1 x Speaker header
  • 1 x CD in header
  • 1 x Floppy connector-support 360K~2.88M Byte, 3 Mode FDDs or LS120

• BIOS:
  • Award 4Mb Flash ROM
  • Supports Plug and Play 1.0A, APM 1.2, Multi Boot, DMI
  • Full support for ACPI revision 1.0 specification

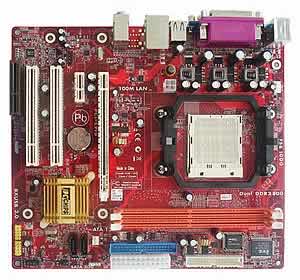

Motherboard Specifications

• Model:
  • PC Chips A13G (V1.0)

• Processor Support:
  • Socket AM2
  • AMD Athlon 64 FX/Athlon 64 x2 Dual-core/Athlon 64/Sempron processor

• Chipset:
  • NVIDIA MCP61V Single chipset

• FSB:
  • 1000 MHz

• Memory:
  • Dual-channel DDR2 memory architecture
  • 2 x 240-pin DDR2 DIMM sockets support up to 16 GB
  • Support DDR2 800/667/533/400 DDR2 SDRAM

• Expansion Slots:
  • 1 x PCI Express Pro slot
  • 1 x PCI Express x 1 slot
  • 2 x PCI slots
  • 1 x Azalia CNR

• On-Board Video:
  • Embedded Geforce 6100-based with 128MB share memory

• On-Board Audio:
  • Realtek ALC660 6-channel High Definition audio

• On-Board LAN:
  • Boardcom AC131 10/100Mbps Fast Ethernet Phy

• Form Factor:
  • Micro ATX Form Factor
  • 9.6" X 9.45"
  • 244x214mm
