PC Chips A31G

Part # 108543

Condition : New- Retail Box

| Warranty: 365 days

Brand : PC Chips

| Log in to add review

Rate this product:

Quantity: Out of Stock

Click "Notify" to get an alert when it's available

PC CHIPS A31G Motherboard - Socket 754 for AMD Athlon 64, Sempron. Specifications, price and availability

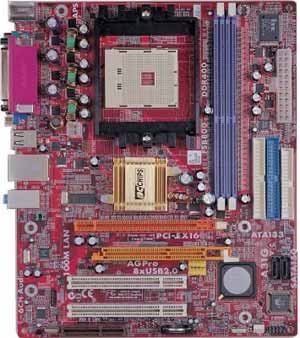

PC CHIPS A31G Motherboard

Socket 754 for AMD Athlon 64, Sempron, SiS 761GX chipset, SATA, 2 DDR, PCI Express 16x, AGPro, 2 PCI, 1 CNR On-board Audio, Video, LAN, USB. Micro ATX.

PC CHIPS A31G Motherboard Socket 754 for AMD Athlon 64, Sempron, SiS 761GX chipset, SATA, 2 DDR, PCI Express 16x, AGPro, 2 PCI, 1 CNR On-board Audio, Video, LAN, USB. Micro ATX.

Internal I/O Interface:
- 24-pin ATX Power Supply connector
- 4-pin ATX 12V power supply connector
- 2 x USB 2.0 header support additional 4 USB2.0 ports
- 2 x Serial ATA connectors
- 1 x Front panel switch/LED header
- 1 x Front panel audio header
- CPU / SYS FAN headers
- 1 x IrDA for SIR header
- 1 x Speaker header
- 1 x CD in header
- 1 x Floppy connector-support 360K~2.88M Byte, 3 Mode FDDs or LS120
Storage/RAID:
- 2 x UltraDMA 133/100/66
- 2 x SATA
- 1 x Floppy

BIOS:
- AMI 4Mb Flash ROM
- Supports Plug and Play 1.0A, APM 1.2, Multi Boot, DMI
- Full support for ACPI revision 1.0 specification

Form Factor:
- Micro-ATX Form Factor, 9.6" x 7.9"

A31G Specifications

Model:
- PC CHIPS A31G

Processor Support:
- Socket 754 for AMD Athlon64(K8)/Sempron processor
FSB:
- 800 MHz
Chipset:
- SiS 761GX/965L

Memory:
- 2 x 184-pin DIMM sockets support two 2.5V DDR SDRAMs (DDR400/333/266)
- Maximum: 2GB
Expansion Slots:
- 1 x PCI Express x 16 slots
- 1 x AGPro Slot
- 2 x PCI slots
- 1 x CNR slot
On-Board Audio:
- AD 1888 6-channel audio Codec
- Compliant with AC'97 2.3 specification

On-Board Video:
- Embedded Mirage Graphics with 128MB share memory

On-Board LAN:
- Realtek RTL8201CL 10/100Mbps Fast Ethernet PHY
Rear Panel I/O Ports:
- 1 x PS/2 keyboard
- 1 x PS/2 mouse
- 1 x Parallel Port
- 1 x Serial Port
- 1 x VGA port
- 4 x USB 2.0 Ports
- 1 x RJ 45 Port
- 1 x Audio I/O (Line-in, Line-out and Mic-in)
