PC Chips M871G (v1.5)

Part # 108541

Condition : New- Retail Box

| Warranty: 365 days

Brand : PC Chips

| Log in to add review

Rate this product:

Quantity: Out of Stock

Click "Notify" to get an alert when it's available

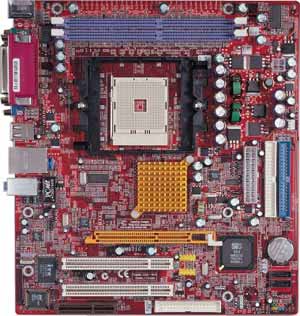

PC CHIPS m871g Motherboard

PC CHIPS M871G Motherboard

Socket 754 for AMD Athlon 64 / Sempron processor, SIS 760GX chipset, 2 PCI, 1 CNR, AGP 8x, SATA, On-board Audio, Video, LAN, USB. Micro ATX

Internal I/O Interface:
- 20-pin ATX power supply connector
- 1 x Floppy connector-support 360K~2.88M Byte, 3 Mode FDDs or LS120
- 1 x IrDA for SIR header
- 1 x Speaker header
- 1 x Front panel switch/LED header
- CPU / SYS FAN headers
- 1 x CD in header
- 1 x Front panel audio header
- 4-pin ATX 12V power supply connector
- 2 x Serial ATA connectors
- 2 x USB 2.0 header support additional 4 USB2.0 ports
Storage/RAID:
- 2 x UltraDMA 133/100/66
- 2 x SATA
- 1 x Floppy

BIOS:
- Supports Plug and Play 1.0A, APM 1.2, Multi Boot, DMI
- Full support for ACPI revision 1.0 specification
- AMI 2Mb Flash ROM

M871G Specifications

Memory:
- Maximum: 2GB
- 2 x 184-pin DIMM sockets support two 2.5V DDR SDRAMs (DDR400/333/266)
Expansion Slots:
- 2 x PCI slots
- 1 x CNR slot
- 1 x AGP 8X
On-Board Audio:
- Compliant with AC'97 2.3 specification
- C-Media CMI9761A 6-channel audio Codec

On-Board Video:
- Embedded Ultra256 3D Graphics with 64M share memory
- Embedded Mirage 2 Graphics with 128MB share memory

On-Board LAN:
- Realtek RTL8201BL 10/100Mbps Fast Ethernet PHY
Rear Panel I/O Ports:
- 1 x PS/2 keyboard
- 1 x PS/2 mouse
- 1 x Parallel Port
- 1 x Serial Port
- 1 x VGA port
- 1 x RJ 45 Port
- 4 x USB 2.0 Ports
- 1 x Audio I/O (Line-in,4X Line-out and Mic-in)
