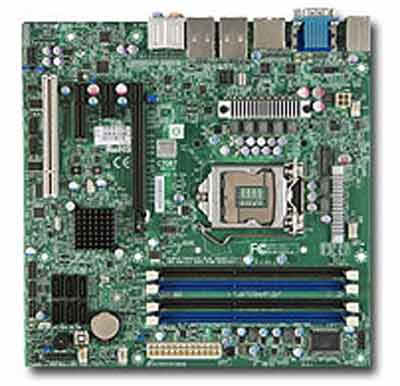

Supermicro C7Q67 Motherboard

• Storage:
  • Intel Q67 and RAID

• Rear Panel I/O Ports:
  • Super I/O: Nuvoton NCT6776F
  • 2x SATA 3.0 ports, RAID 0, 1
  • 4x SATA 2.0 ports, RAID 0, 1, 5, 10
  • SATA 3.0 6Gbps / SATA 2.0 3Gbps
  • 2x RJ45 LAN ports
  • 2x USB 3.0 ports; 10x USB 2.0 ports (6 rear, 6 ports via internal headers)
  • S/PDIF I/O headers
  • 1x VGA port, 2x HDMI 1.4 ports
  • DOM power connector support
  • 4 Fast UART 16550 serial ports (Three header and one rear port)
  • PS/2 keyboard/mouse shared connector
  • Security: TPM 1.2 On Board


• Hardware Monitoring:

  • Monitors for CPU Cores, +1.8V, +3.3V, +5V, ±12V, +3.3V Standby, +5V Standby, VBAT, HT, Memory, Chipset Voltages.
  • 5-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V
  • FAN: Total of 4 fan headers supporting up to 4 fans; four 4-pin fan headers
  • 4x fans with tachometer status monitoring
  • Status monitor for speed control
  • Status monitor for on/off control
  • Support 3-pin fans (w/o speed control)
  • Low noise fan speed control
  • Pulse Width Modulated (PWM) fan connectors
  • Temperature: Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • FC temperature sensing logic
  • Thermal Monitor 2 (TM2) support
  • PECI
  • CPU / System Overheat LED
  • +5V Standby alert LED
  • Chassis intrusion detection
  • Chassis intrusion header


Motherboard Specifications

• Model:
  • Supermicro C7Q67 Motherboard


• Processor Support:

  • Socket H2 (LGA 1155)
  • Intel ® 2nd Generation Core i7/i5/i3, Pentium and Celeron processor

• Chipset:
  • Intel ® Q67 Express chipset

• Memory:

  • 4x 240-pin DDR3 DIMM sockets
  • Supports up to 32 GB DDR3 non-ECC Un-Buffered memory (UDIMM)
  • 1333/1066MHz
  • Support non-ECC DDR3 UDIMM only
  • 1333/1066/800MHz non-ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
  • 8GB, 4GB, 2GB, 1GB
  • 1.5 V

• Expansion Slots:

  • 1 (x16) PCI-E 2.0 slot
  • 1 (x4) PCI-E 2.0 slot
  • 1 (x1) PCI-E slot
  • 1x 32-bit PCI 5V slot

• On-Board Audio:
  • REALTEK ALC889 7.1 HD Audio

• On-Board LAN:

  • Intel ® 82579LM and 82574L, 2x Gigabit LAN ports
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output

• Form Factor/Dimensions:
  • Micro ATX
  • 9.6" x 9.6" (24.4cm x 24.4cm)
• Manageability:

• SuperDoctor ® III
• Watch Dog
• Power Configurations: AMT 7.0 and ME
• ACPI / ACPM Power Management
• Main Switch Override Mechanism
• Wake-On-LAN (WOL) header
• Keyboard Wakeup from Soft-Off
• Power-on mode for AC power recovery
• Internal/External modem ring-on
• BIOS:
• 64Mb SPI Flash EEPROM with AMI BIOS
• Features: Plug and Play (PnP)
• DMI 2.3
• PCI 2.3
• ACPI 1.0 / 2.0
• USB Keyboard support
• RTC (Real time Clock) Wakeup
