• Rear Panel I/O Ports:
  • 2 RJ45 LAN ports
  • 2 USB Rear Ports USB 2.0 Compliant, 1.1 Compatible
  • 1 Fast UART 16550 serial port
  • 1 VGA port
  • Stacked PS/2 keyboard and mouse ports


• Video:
  • ATI ES1000 Graphics Controller


• Manageability:
  • ACPI/APM Power Management
  • Main Switch Override Mechanism
  • Wake-On-Ring (WOR) header, Wake-On-LAN (WOL) header
  • Power-on mode control for AC power loss recovery
  • Keyboard Wakeup from Soft-Off
  • CPU Fan auto-off in sleep mode
  • Internal/External modem remote ring-on
  • Monitors CPU Core Voltages, +5V, ±12V, 5.5V Standby, 2.5V Standby, VBAT
  • CPU switching voltage regulator
  • Monitor for HyperTransport voltage 1.2V, DDR termination 1.25V
  • Total of five 3-pin fan headers
  • Status monitor with firmware/software speed control
  • 5 Fan Status Tachometer monitoring
  • Low noise fan speed control
  • Monitoring for CPU and chassis environment
  • I2C temperature sensing logic
  • CPU thermal trip support
  • CPU / System Overheat LED
  • Suspend-state indicator LED
  • +5V Standby Alert LED
  • Chassis intrusion detection, Chassis intrusion header
  • Optional IPMI (Intelligent Platform Management Interface) 2.0
  • Chipkill Support
  • Super Doctor III, Watch Dog, NMI

Supermicro H8SSL-i2 Specifications

• Model:

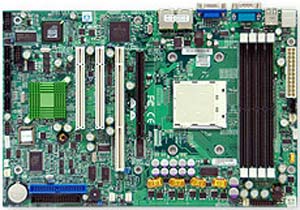

  • Supermicro H8SSL-i2 Motherboard

• Processor Support:
  • Single 940-pin AM2 Socket
  • Supports one Dual-Core AMD Opteron 1000 Series (Socket AM2) processor
  • 4 phase VRM


• FSB:
  • 800MHz HyperTransport

• Chipset:
  • ServerWorks HT1000


• Memory:
  • Four 240-pin DIMM sockets
  • Supports up to 8 GB DDR2 800/667/533 MHz memory
  • Single or Dual (recommended) channel memory
  • DDR2 800/667/533MHz un-buffered ECC / non-ECC SDRAM 72-bit, 240-pin gold-plated DIMMs
  • 256 MB, 512 MB, 1 GB, 2 GB, 1.8V only


• Expansion Slots:
  • 1 64-bit 133MHz PCI-X (3.3V) slot
  • 2 PCI 32-bit, 33MHz expansion slots

• On-Board LAN:
  • Broadcom BCM5704C Dual Gigabit Ethernet Controller
  • Supports 1000BASE-T, RJ45 output


• Storage:
  • 4 SATA Ports using ServerWorks HT1000 controller
  • Four SATA hard drives supported
  • Single ATA 100 EIDE channels support up to two UDMA IDE devices
  • Supports UDMA Mode 5
  • Supports ATA/100


• IPMI:
  • 1U support: Intelligent Platform Management Interface v.2.0+
  • (Optional: AOC-1UIPMI-B)
  • (Optional: AOC-LPIPMI-LANG)
  • Remote Management Module
  • (Card not included)


• BIOS:
  • 4Mb Flash EEPROM with AMI ® BIOS
  • SST-49LF004B BIOS Chip
  • Plug and Play (PnP)
  • ACPI 1.0, PCI 2.2, DMI 2.3
  • BIOS Rescue Hot Keys
  • Hardware BIOS Virus Protection
  • USB Keyboard support
  • SMBIOS 2.3


• Form Factor:
  • ATX
  • 12.0" x 8.0" (30.5cm x 20.3cm)
  • To ensure system stability, a 300W (minimum) ATX power supply
    [4-pin (+12V) and 24-pin are required]
