• Rear Panel I/O Ports:
  • 1 RJ45 LAN port
  • 2x USB rear ports (USB 2.0 Compliant / 1.1 Compliant)
  • 1 VGA Conector
  • 1 Fast UART 16550 serial port
  • 1 ECP / EEP Parallel Port
  • Stacked PS/2 keyboard and mouse ports


• Manageability:
  • ACPI/APM Power Management
  • Main Switch Override Mechanism
  • Wake-On-Ring (WOR) header, Wake-On-LAN (WOL) header
  • Power-on mode control for AC power loss recovery
  • Suspend to RAM (STR)
  • Internal/External modem remote ring-on
  • Monitors for CPU Cores, +3.3V, +5, ±12V, +3.3V/+5V Standby, VBAT
  • CPU Core 3-Phase-switching voltage regulator with auto-sense from 0.85V-1.65V
  • Adjustable CPU clock frequency ratio settings (via BIOS)
  • Total of five 3-pin fan headers
  • Status monitor with firmware/software speed control
  • 3x fans with tachometer status monitoring
  • Support 3-pin PWM fans (with speed control)
  • Low noise fan speed control
  • Pulse Width Modulated (PWM) fan conn.
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • Thermal Monitor (TM2) Support
  • CPU Overheat LED, System Overheat LED
  • +5V standby alert LED
  • Thermal Monitor 2 (TM2) Support
  • Chassis intrusion detection, Chassis intrusion header
  • Suspend-state indicator LED
  • Super Doctor III, Watch Dog

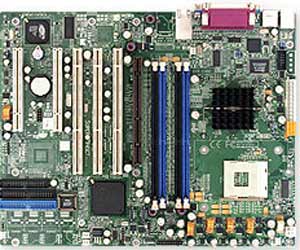

Supermicro P4SCT Specifications

• Model:
  • Supermicro P4SCT Motherboard

• Processor Support:
  • Single mPGA478 ZIF Sockets
  • Supports an Intel® Pentium® 4 processor with 2MB of integrated Advanced Transfer Cache up to 3.4GHz (Extreme Edition)
  • Supports an Intel® Pentium® 4 processor with 1MB of integrated Advanced Transfer Cache up to 3.2GHz
  • Supports an Intel® Celeron® processor with 128KB of integrated Advanced Transfer Cache up to 2.4GHz
  • Hyper-Threading (HT) capable
  • 800 / 533 / 400MHz system bus

• Chipset:
  • Intel® 875P (Canterwood ES)
  • MCH + 6300ESB + FWH


• Memory:
  • Four 184-pin DIMM sockets
  • Supports up to 4 GB of DDR400/333/266 memory
  • Dual channel memory bus
  • Memory must be populated in pairs
  • DDR400/333/266 (ECC or non-ECC) unbuffered SDRAM, 184-pin gold-plated DIMMs
  • 128MB, 256 MB, 512 MB, 1 GB, 2.5 V only


• Expansion Slots:
  • 2x 32-bit 33MHz PCI (5V) slots
  • 3x 64-bit 66MHz PCI-X (3.3V) slots
  • 1 8x AGP Pro 1.5V

• On-Board LAN:
  • 1x Intel® 82547GI CSA Gigabit Ethernet Controller
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output


• Storage:
  • SATA Controller on-chip (Intel® 6300ESB)
  • Dual Serial ATA ports
  • RAID 0, 1 Supported
  • Dual EIDE channels support up to four UDMA IDE devices
  • Supports UDMA Mode 5, PIO Mode 4, and ATA/100


• Graphics:
  • ATI Rage XL SVGA PCI video controller
  • 8 MB of video memory


• BIOS:
  • 8Mb Flash EEPROM with AwardBIOS®
  • Plug and Play (PnP)
  • ACPI 1.0, PCI 2.3, DMI 2.3, APM 1.2
  • BIOS Rescue Hot Keys
  • USB Keyboard support
  • Hardware BIOS virus protection
  • SMBIOS 2.3


• Form Factor:
  • ATX
  • 12" x 9.5", (30.5cm x 24.1cm)
