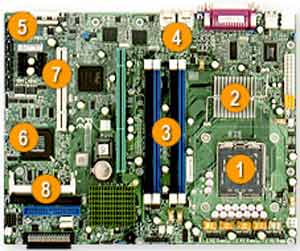

Supermicro P8SC8 Motherboard
Socket 775 for Intel Pentium 4,
Intel E7221 chipset, RAID, SCSI, IDE, SATA, 4 DIMM, 2 PCI Express 1x, 1
PCI-X, 1 PCI, VIDEO, LAN, USB Support. |
|
- Internal I/O Interface:
- Intel ® ICH6R SATA controller
- RAID 0, 1, JBOD support
- SCSI Adaptec AIC-7902
Controller
Dual-Channel Ultra320 SCSI (Host RAID only supports 4 drives)
- Host RAID 0, 1, 10, JBOD
support
- RAID Support for Zero-Channel
RAID with Adaptec 2010S ZCR Card (Card NOT included)
- IPMI Support for Intelligent
Platform Management Interface v.2.0
(Optional: AOC-IPMI20-E) Card not included.
- Storage/RAID:
- Four Serial ATA ports
- Four SATA hard drives
supported
- One EIDE channel supports up
to two UDMA IDE devices
Supports UDMA Mode 5, and ATA/100
- 1 Floppy controller; 1.44 MB,
2.88 MB, 3-mode support
- BIOS:
- 8Mb Flash EEPROM with AwardBIOS ®
- Plug and Play (PnP)
- PCI 2.2
- ACPI 1.0
- USB Keyboard support
- On-Board Video:
- Onboard integrated server quality
graphics in MCH
- Rear Panel I/O Ports:
- 1x Infrared port header
- 2x RJ45 LAN port
- 2x USB 2.0 / 1.1 ports
- 4x USB 2.0 / 1.1 header for 4x
ports
- 1x VGA port
- PS/2 keyboard and mouse ports
- 1x Fast UART 16550 serial ports
- 1x serial header
- 1x ECP/EEP Parallel Port
|
P8SC8
Specifications
- Processor Support:
- Single LGA775 (Prescott) ZIF
Socket
- Supports an Intel ® Pentium ® 4
processor (800MHz FSB) or
- Supports an Intel ® Celeron ®
processor with 256KB L2 Cache (533MHz FSB)
- Hyper-Threading (HT) enabled
- Chipset:
- FSB:
- Memory:
- Four 240-pin DIMM sockets
- Supports up to 4 GB DDRII 400 /
533MHz unbuffered ECC or Non-ECC memory
- Dual channel memory bus
- Memory must be populated in pairs
- DDRII 400 / 533MHz unbuffered ECC
or Non-ECC SDRAM 72-bit, 240-pin gold-plated DIMMs
- Expansion Slots:
- 2 (x1) PCI-e slots
- 1x 64-bit 100MHz PCI-X (3.3V) slot
- 1x 32-bit 33MHz PCI (5V) slot
- On-Board LAN:
- 2x Broadcom BCM5721 Gigabit
Ethernet Controllers
- Supports 10/100/1000BASE-T, RJ45
output
- Form Factor:
- ATX
- 12" x 9.5 ", (30.5cm x 24.0cm)
- Manageability:
- Monitors for CPU Cores, +1.8V, +3.3V,
+5, ±12V, +5V Standby
- CPU Core 4-Phase-switching voltage
regulator with auto-sense from 0.8375V-1.6000V
- Total of five 3-pin fan headers
- 5x fans with tachometer monitoring
- Status monitor with firmware /
software speed control
- Support 3-pin fans
- Temperature Monitoring for CPU and
chassis environment
- CPU thermal trip support
- Thermal control for 5x fan connectors
- I2C temperature sensing logic
- CPU / System Overheat LED
- +5V standby alert LED
- Chassis intrusion detection
- Chassis intrusion header
|
