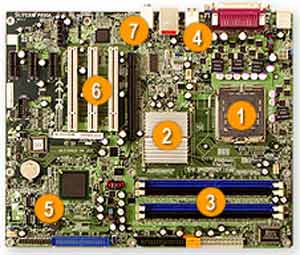

Supermicro P8SGA Motherboard
Socket 775 for Intel Pentium 4,
Intel 915G chipset, 4 DIMM, SATA, IDE, 1 PCI Express 16x, 3 PCI Express
1x, 3 PCI, USB, LAN, VIDEO, AUDIO Support. |
|
- Internal I/O Interface:
- Intel ® ICH6 SATA controller
built-in
- Storage/RAID:
- Four Serial ATA ports
- Four SATA hard drives
supported
- One EIDE channel supports up
to two UDMA IDE devices
- Supports UDMA Mode 5, PIO Mode
4, and ATA/100
- 1 Floppy controller; 1.44 MB,
2.88 MB, 3-mode support
- BIOS:
- 4Mb Flash EEPROM with AwardBIOS ®
- Plug and Play (PnP)
- APM 1.2
- DMI 2.3 support
- PCI 2.2
- ACPI 1.0
- BIOS rescue hot keys
- USB Keyboard support
- On-Board Video:
- On-chip third generation integrated gfx graphics core
- On-Board Audio:
- AC'97 audio CODEC with high quality
6-channel sound
- Rear Panel I/O Ports:
- 1x Infrared port header
- 1x RJ45 LAN port
- 6x USB 2.0 / 1.1 ports
- 1x USB 2.0 / 1.1 header for 2x
ports
- 1x VGA port
- 1x Line In / Line Out / Microphone
ports
- PS/2 keyboard and mouse ports
- 1x Fast UART 16550 serial port
- 1x Serial Header
- 1x ECP/EEP Parallel Port
|
P8SGA
Specifications
- Processor Support:
- Single LGA775 ZIF Socket
- Supports an Intel ® Pentium ® 4 processor (800MHz FSB) or
- Supports an Intel ® Celeron ® processor with 256KB L2 Cache
(533MHz FSB)
- Hyper-Threading (HT) enabled
- Chipset:
- FSB:
- Memory:
- Four 184-pin DIMM sockets
- Supports up to 4 GB of unbuffered,
non-ECC DDR400/333MHz memory (Single / Dual Channel)
- DDR400/333MHz unbuffered, non-ECC
SDRAM, 184-pin gold-plated DIMMs
- Expansion Slots:
- 1 (x16) PCI-e slot (intended for
Graphics applications)
- 3 (x1) PCI-e slots
- 3x 32-bit 33MHz PCI (5V) slots
- On-Board LAN:
- Single-port Intel ® 82541GI Gigabit
Ethernet
- Supports 10BASE-T,
100/1000BASE-TX, RJ45 output
- Form Factor:
- ATX
- 12" x 9.5 ", (30.5cm x 24.0cm)
- Manageability:
- Monitors for CPU Cores, +3.3V, +5,
±12V, +3.3V/+5V Standby, VBAT
- CPU Core 4-Phase-switching voltage
regulator with auto-sense from 0.8375V-1.6000V
- Adjustable CPU clock frequency ratio
settings (via BIOS)
- Total of three 4-pin fan headers
- 3x fans with tachometer monitoring
- Status monitor with firmware /
software speed control
- Support 3-pin fans (w/o speed control)
- Temperature Monitoring for CPU,
chassis, environment
- CPU thermal trip support
- CPU / System Overheat LED
- +5V standby alert LED
- Suspend-state indicator LED
- Chassis intrusion detection
- Chassis intrusion header
|
