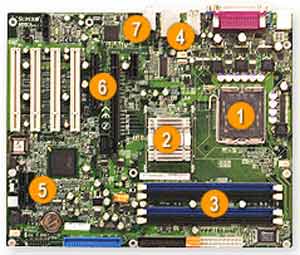

Supermicro PDSLA Motherboard
Socket 775 for Intel Pentium D,4,
Intel 945G Chipset, 4 DIMM, SATA, IDE, SCSI, Video, Audio, LAN, USB, 3
PCI-Express 16x, 4 PCI Support. |
|
- Internal I/O Interface:
- Intel ® ICH7 SATA (3Gbps)
controller built-in
- Storage/RAID:
- Four Serial ATA ports (3Gbps
performance)
- Four SATA hard drives
supported
- One EIDE channel supports up
to two UDMA IDE devices
- Supports UDMA Mode 5, PIO Mode
4, and ATA/100
- 1 Floppy controller; 1.44 MB,
2.88 MB, 3-mode support
- BIOS:
- 4Mb Flash EEPROM with AwardBIOS ®
- Supports Over-Clocking feature
- Plug and Play (PnP)
- APM 1.2
- DMI 2.3 support
- PCI 2.2
- ACPI 1.0
- BIOS rescue hot keys
- USB Keyboard support
- On-Board Video:
- On-chip integrated gfx graphics core
- On-Board Audio:
- AC'97 audio CODEC with high quality
6-channel sound
- Rear Panel I/O Ports:
- 1x RJ45 LAN port
- 8x USB 2.0 compliant / 1.1
compatible (6x ports + 2x headers)
2 in front (FUCI), 6 in rear
- 1x VGA port
- 1x Line In / Line Out / Microphone
ports
- Front Panel Header
- PS/2 keyboard and mouse ports
- 1x Fast UART 16550 serial port
- 1x Serial Header
- 1x ECP/EEP Parallel Port
- Form Factor:
- ATX
- 11.5" x 9.5 ", (29.2cm x 24.0cm)
|
PDSLA
Specifications
- Processor Support:
- Single LGA775 Socket
- Supports an Intel ® Pentium ® D (Dual Core) processor
- Supports an Intel ® Pentium ® 4 Extreme Edition processor
- Supports an Intel ® Pentium ® 4 processor
- Supports an Intel ® Celeron ® D processor with 256KB L2 Cache
- Hyper-Threading (HT) capable
- Chipset:
- FSB:
- 1066 / 800 / 533 MHz system bus
- Memory:
- Four 240-pin DIMM sockets
- Supports up to 4 GB of unbuffered,
non-ECC DDRII 667/533/400MHz memory (Single / Dual Channel)
- DDRII 667/533/400MHz unbuffered,
non-ECC SDRAM, 240-pin gold-plated DIMMs
- Expansion Slots:
- 1 (x16) PCI-e slot (intended for
Graphics applications)
- 2 (x1) PCI-e slots, (one using x8
slot)
- 4x 32-bit 33MHz PCI (5V) slots
- On-Board LAN:
- Intel ® 82573V Gigabit PCI-Express
Ethernet (Tekoa)
- Supports 10BASE-T,
100/1000BASE-TX, RJ45 output
- Manageability:
- Monitors for CPU Cores, +1.5V,
+3.3V, +5V, ±12V, +3.3V/+5V Standby, VBAT
- CPU Core 4-Phase-switching voltage
regulator with auto-sense from 0.8375V-1.6000V
- Adjustable CPU clock frequency
ratio settings (via BIOS)
- Total of three 4-pin fan headers
- 3x fans with tachometer monitoring
- Status monitor with firmware /
software speed control
- Support 4-pin fans (with speed
control)
- Fan Fail Alarm
- Temperature Monitoring for CPU and
chassis environment
- CPU thermal trip support
- Thermal Monitor (TM2) Support
- CPU / System Overheat LED
- +5V standby alert LED
- Suspend-state indicator LED
- Chassis intrusion header
- Lead Free (not 100%)
|
