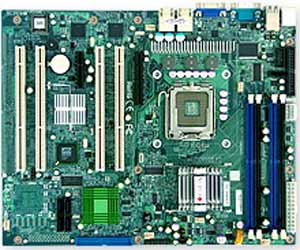

Supermicro
PDSME+
Motherboard
Single LGA775 ZIF Sockets, Supports an Quad-Core Intel ® Xeon ® 3200, Dual-Core Intel ® Xeon ® 3000, Quad-Core Intel ® Core2 Extreme, Intel ® Core 2 Quad, Core2 Duo, Pentium ® 4, Pentium ® D, Celeron ® D, Intel 3010 chipset, 1 (x8) PCI-E, 1 (x4) PCI-E, 2x 64-bit PCI-X 133MHz, 2x 64-bit 100MHz, DDR2 DIMM Up to 8 GB, Dual LAN, USB, IDE, SATA, RAID, Video, ATX Form Factor
|
|
- Internal I/O Interface:
- 1 Floppy controller; 1.44 MB, 2.88 MB
- 1x USB internal headers
- 1x Serial Header
- Four SATA hard drives supported
- Rear Panel I/O Ports:
- 2 RJ45 LAN ports
- 1x VGA port
- 2x USB rear ports (4 USB 2.0 Compliant / 1.1 Compliant)
- 1 Fast UART 16550 serial port
- Stacked PS/2 keyboard and mouse ports
- Video:
- On-board ATI ES1000
- 16MB graphics
- Manageability:
- ACPI/APM Power Management
- Main Switch Override Mechanism
- Wake-On-Ring (WOR) header, Wake-On-LAN (WOL) header
- Power-on mode control for AC power loss recovery
- Keyboard Wakeup from Soft-Off
- CPU Fan auto-off in sleep mode
- Internal/External modem remote ring-on
- Suspend to RAM (STR)
- Monitors for CPU Cores (+1.5V, +1.8V, +3.3V, +5, ±12V, +5V Standby, VBAT)
- CPU Core 3-Phase-switching voltage regulator with auto-sense from 0.3750V-1.6000V
- Total of six 4-pin fan headers
- Status monitor with firmware/software speed control
- 6x fans with tachometer status monitoring
- Support 3-pin PWM fans (with speed control)
- Status monitor for on/off control
- Low noise fan speed control
- Pulse Width Modulated (PWM) fan conn.
- Monitoring for CPU and chassis environment
- CPU thermal trip support
- CPU / System Overheat LED
- Standby alert LED, Suspend-state indicator LED
- Thermal Monitor 2 (TM2) Support
- Chassis intrusion detection, Chassis intrusion header
- Optional IPMI (Intelligent Platform Management Interface) 2.0
- Super Doctor III, Watch Dog, NMI
|
Supermicro
PDSME+
Specifications
- Model:
- Supermicro
PDSME+
Motherboard
- Processor Support:
- Single LGA775 ZIF Socket
- Supports a Quad-Core Intel ® Xeon ® 3200 Series processor
- Supports a Dual-Core Intel ® Xeon ® 3000 Series processor
- Supports a Quad-Core Intel ® Core2 Extreme Series processor
- Supports an Intel ® Core 2 Quad processor
- Supports an Intel ® Core 2 Duo processor
-
Supports an Intel ® Pentium ® D (Dual Core) processor
- Supports an Intel ® Pentium ® Extreme Edition processor
- Supports an Intel ® Pentium ® 4 processor
- Supports an Intel ® Celeron ® D
- 1066 / 800 / 533 MHz system bus
- Chipset:
- Intel 3010 (Mukilteo-2P) chipset
- ICH7R + PXH-V + Intel ® 82573V + Intel ® 82573L
- Memory:
- Four 240-pin DIMM sockets
- Supports up to 8 GB
(Single / Dual Channel)
- DDR2 667/533MHz unbuffered, non-ECC SDRAM, 240-pin gold-plated DIMMs
- 256 MB, 512 MB, 1 GB, 2 GB, 1.8V only
- Expansion Slots:
- 1 (x8) PCI-e slot
- 1 (x4) PCI-e slot
- 2x 64-bit PCI-X 133MHz
- 2x 64-bit 100MHz PCI-X
- On-Board LAN:
- 2x Single-port Gigabit PCI-Express Ethernet Controllers
- Intel ® 82573V
- Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
- Storage:
- Intel ® ICH7R SATA (3Gbps) controller built-in
- Four SATA hard drives supported
- RAID 0, 1, 5, 10 support (Windows Only)
- RAID 0, 1, 10 support (Linux)
- One EIDE channel supports up to two UDMA IDE devices
- Supports UDMA Mode 5, PIO Mode 4, and ATA/100
- IPMI:
- Support for Intelligent Platform Management Interface v.2.0
- IPMI 2.0 with virtual media over LAN & optional KVM-over-LAN support
- Supermicro Intelligement Management
- (Optional: AOC-SIM1U+)
- NOTE: Must use dedicated LAN for IPMI function
- BIOS:
- 8Mb Flash EEPROM with PhoenixBIOS ®
- Plug and Play (PnP)
- ACPI 1.0, PCI 2.2, DMI 2.3
- USB Keyboard support
- SMBIOS 2.3
- Form Factor:
- ATX
- 12" x 9.6", (30.5cm x 24.4 cm)
|
