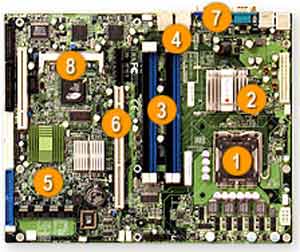

Supermicro PDSMi Motherboard
Socket 775 for Intel Pentium D,4
and Extreme Edition, Intel E7230, 4 DIMM, SATA, RAID, IDE, 1 SXB-E, 1
PCI, Video, LAN, USB Support. |
|
- Internal I/O Interface:
- Intel ® ICH7R SATA controller
built-in
- RAID 0, 1, 5, 10
- 1U support for Intelligent
Platform Management Interface v.2.0 (Optional: AOC-IPMI20-E )
- Storage/RAID:
- Four Serial ATA ports (3 Gbps
performance)
- Four SATA hard drives
supported
- One EIDE channel supports up
to two UDMA IDE devices
- IDE Master / Slave 2 ports
- Supports UDMA Mode 5, PIO Mode
4, and ATA/100
- White Connector for Compact
Flash (CF, 50-pin) card only
- 1 Floppy controller; 1.44 MB
- BIOS:
- 8Mb Flash EEPROM with Phoenix BIOS ®
- Plug and Play (PnP)
- APM 1.2
- DMI 2.3 support
- PCI 2.2
- ACPI 1.0
- USB Keyboard support
- On-Board Video:
- On-board ATI RageXL graphics, 8MB
- Rear Panel I/O Ports:
- 2x RJ45 LAN ports
- 6x USB 2.0 compliant / 1.1
compatible
- 4x internal USB headers
- 2x rear ports
- 1x VGA Port
- PS/2 keyboard and mouse ports
- 1x Fast UART 16550 serial port
- 1x Header
- 1x ECP / EEP Parallel Header
- Form Factor:
- ATX
- 12.0" width x 9.6 " length ,
(30.5cm x 24.4cm), 6 layers
|
PDSMi
Specifications
- Processor Support:
- Single LGA775 ZIF Socket
- Supports an Intel ® Pentium ® D
(Smithfield Dual Core) processor up to 3.2GHz
- Supports an Intel ® Pentium ®
Extreme Edition processor
- Supports an Intel ® Pentium ® 4
processor up to 3.8GHz
- Supports an Intel ® Pentium ® 4
Extreme Edition processor up to 3.72GHz
- Supports an Intel ® Celeron ® D
processor with 256KB L2 Cache up to 3.06GHz
- Hyper-Threading (HT) capable
2MB / 1MB L2 Cache
- 1066 / 800 / 533 MHz system bus
- Chipset:
- FSB:
- Memory:
- Four 240-pin DIMM sockets
- Supports up to 8 GB of unbuffered,
ECC DDRII 667/533MHz memory (Dual Channel)
- DDRII 667/533MHz unbuffered, ECC
SDRAM, 240-pin gold-plated DIMMs
- Expansion Slots:
- 1x Universal (SXB-E) Slot for Riser
(x1)
[ 1 (x8) PCI-Express Slot ] OR
[ 1x 64-bit PCI-X 133MHz Slot ]
- 1x 32-bit 33MHz PCI (5V) slot
- On-Board LAN:
- Dual-port Intel ® 82573V Gigabit
PCI-Express Ethernet (Tekoa)
- Supports 10Base-T, 100Base-TX,
1000BASE-TX, RJ45 output
- Manageability:
- Monitors for CPU Cores (+1.8V,
+3.3V, +5, ±12V, +3.3V/+5V Standby, VBAT)
- CPU Core 4-Phase-switching voltage
regulator with auto-sense from 0.8375V-1.6000V
- Adjustable CPU clock frequency
ratio
- Fan Speed Control
- Total of five proprietary fan
headers
- 6 fans with tachometer monitoring
- Status monitor with firmware speed
control
- Low noise fan speed control
- Status monitor for on/off control
- Support 3-pin fans (without speed
control)
- Pulse Width Modulated (PWM) fan
connector
- Temperature Monitoring for CPU and
chassis environment
- CPU thermal trip support
- LED +5V Standby Alert LED
- Suspend-state indicator LED
- Chassis Intrusion Detection
- Chassis Intrusion Header
|
