• Rear Panel I/O Ports:
  • 2 RJ45 LAN ports
  • 2x USB rear ports (Total 4 USB 2.0 Compliant / 1.1 Compliant)
  • 1x VGA Port
  • 1 Fast UART 16550 serial ports 1 Header
  • Stacked PS/2 keyboard and mouse ports


• Manageability:
  • ACPI/API Power Management
  • Wake-On-Ring (WOR) header
  • Wake-On-LAN (WOL) header
  • Main Switch Override Mechanism
  • Power-on mode for AC power recovery
  • Internal/External modem remote ring-on
  • Monitors for CPU Cores,+1.8V, +3.3V, +5V, ±12V, +3.3V Standby, +5V Standby, VBAT
  • 4-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V
  • Adjustable CPU Clock Frequency Ratio
  • Total of five 4-pin and 3-pin fan headers supporting up to 5 fans
  • 5x fans with tachometer status monitoring
  • Status monitor for speed control
  • Status monitor for on/off control
  • 3-pin fan support
  • Low noise fan speed control
  • Pulse Width Modulated (PWM) fan connectors
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • Thermal Control for 5x fan connectors
  • PSU I2C temperature sensing logic
  • Thermal Monitor 2 (TM2) support
  • CPU / System Overheat LED
  • Suspend-State Indicator LED
  • +5V Standby Alert LED
  • Chassis intrusion detection
  • Chassis intrusion header
  • SDDC Support
  • Super Doctor III, Watch Dog, NMI

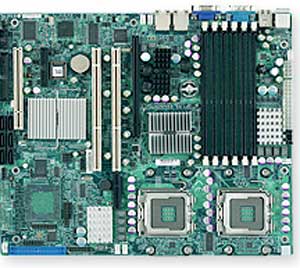

Supermicro X7DVL-L Specifications

• Model:
  • Supermicro X7DVL-L Motherboard

• Processor Support:
  • Dual 771-pin LGA Sockets
  • Supports up to two Intel ® 64-bit Xeon ® processor(s) of the same type below:
  • Quad-Core Intel® Xeon®Processor 5300 sequence (Clovertown processor) 90 watt lower power
  • Dual-Core Intel® Xeon®Processor 5100 sequence (Woodcrest processor) 90 watt or lower power
  • FSB 1333 / 1066 / 667 MHz system bus

• Chipset:
  • Intel ® 5000V (Blackford VS)
  • MCH + ESB2


• Memory:
  • Four 240-pin DIMM sockets
  • Supports up to 16 GB 667 / 533MHz DDR2 ECC FB-DIMM memory
  • Dual branch memory bus
  • Memory must be populated in pairs
  • 667 / 533MHz FB-DIMM (Fully Buffered DIMM) ECC DDR2 SDRAM 72-bit, 240-pin gold-plated DIMMs 256, 512 MB, 1GB, 2GB, 4GB 1.8V only,
  • Corrects single-bit errors, Detects double-bit errors (using ECC memory)
  • Supports Intel ® x4 and x8 Single Device Data Correction (SDDC)


• Expansion Slots:
  • 1 (x8) PCI-e slots
  • 1x 32-bit 33MHz PCI (5V)

• On-Board LAN:
  • Intel® (ESB2/Gilgal) 82563EB Dual-port Gigabit Ethernet Controller
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output


• Storage:
  • Intel SB SATA 3.0Gbps Controller
  • RAID 0, 1, 5, 10 support (Windows Only)
  • Four SATA hard drives supported
  • Single EIDE channel supports up to two UDMA IDE devices (IDE-M, IDE-S)
  • Supports UDMA Mode 5, PIO Mode 4, and ATA/100


• Video:
  • XGI Volari Z7 PCI-E Graphics Processor
  • 16Mb


• BIOS:
  • 8Mb Flash EEPROM with Phoenix® BIOS
  • Plug and Play (PnP)
  • ACPI 1.0, PCI 2.2, DMI 2.3
  • BIOS Rescue Hot Keys
  • SMBIOS 2.3
  • USB Legacy support
  • Hardware BIOS Virus Protection


• Form Factor:
  • Proprietary Form Factor
  • 9.6" x 10" (24.4cm x 25.4cm)
