• BIOS:
  • 8Mb Flash EEPROM with Phoenix ® BIOS
  • Plug and Play (PnP)
  • SMBIOS 2.3
  • APM 1.2
  • DMI 2.1
  • ACPI 1.0
  • Fan Speed Control

• On-Board Audio:
  • AC'97 audio CODEC
  • high quality 6-channel sound

• Rear Panel I/O Ports:
  • 1x RJ45 LAN port
  • 4x USB rear ports
  • 4x USB internal headers
  • USB 2.0 Compliant / 1.1 Compliant
  • 1x Line In / Line Out / Microphone ports
  • PS/2 keyboard and mouse ports
  • 2 Fast UART 16550 serial ports
  • 1 ECP/EEP parallel port

• Form Factor:
  • Extended ATX
  • 12" x 13.05" (30.5cm x 33.2cm)

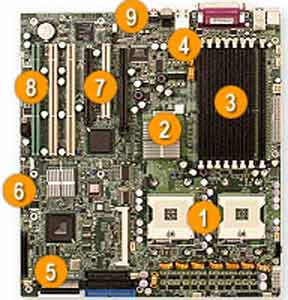

X6DA8-G Specifications

• Model:
  • Supermicro X6DA8-G

• Processor Support:
  • Dual 604-pin FC-mPGA4 Sockets
  • Supports up to two Intel ® 64-bit Xeon ® processor(s) of the same type
  • 800 MHz system bus

• Chipset:
  • Intel E7525

• FSB:
  • 800MHz FSB

• Memory:
  • Eight 184-pin DIMM sockets
  • Supports up to 16 GB DDR 333 MHz memory or
  • Supports up to 32 GB DDR 266 MHz memory
  • Dual channel memory bus
    Memory must be populated in pairs

• Expansion Slots:
  • 1 (x16) PCI-e slot
  • 1 (x4) using (x16 slot)
  • 1x 64-bit 133MHz PCI-X (3.3V) slot
  • 2x 64-bit 100MHz PCI-X (3.3V) slots
  • 1x 32-bit 33MHz PCI (5V) slot

• On-Board LAN:
  • Intel ® 82545GM Single Port Gigabit Controller
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output

• Manageability:
  • Monitors for CPU Cores, +3.3V, +5V, ±12V & +5V Standby
  • CPU Core 4-Phase-switching voltage regulator with auto-sense from 0.8375V-1.6V
  • Total of eight 4-pin fan headers
    8x fans with status monitoring
  • Low noise fan speed control
  • Pulse Width Modulated (PWM) fan connector
  • Temperature Monitoring for CPU, chassis, environment
  • CPU thermal trip support
  • Thermal Monitor 2 support
  • CPU Overheat LED
  • System Overheat LED
  • Suspend-state indicator LED
  • Chassis intrusion detection
  • Chassis intrusion header
  • SDDC
