• BIOS:
  • 8Mb Flash EEPROM with AMI ® BIOS
  • Plug and Play (PnP)
  • SMBIOS 2.3
  • APM 1.2
  • DMI 2.1
  • ACPI 2.0

• On-Board Audio:
  • AC'97 audio CODEC
  • high quality 6-channel sound

• On-Board LAN:
  • 1x Intel ® 82541GI Gigabit Ethernet
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output


• Rear Panel I/O Ports:
  • 1x RJ45 LAN port
  • Up to 4 USB 2.0 ports
  • 2x ports, 2x headers
  • 1x Line In / Line Out / Microphone ports
  • PS/2 keyboard and mouse ports
  • 2 Fast UART 16550 serial ports
  • 1 ECP/EEP parallel header (CBL-081)

• Form Factor:
  • ATX
  • 12" x 10" (30.5cm x 25.4cm)

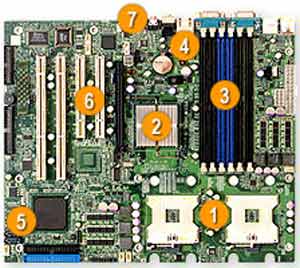

X6DAL-XG Specifications

• Model:
  • Supermicro X6DAL-XG

• Processor Support:
  • Dual 604-pin FC-mPGA4 Sockets
  • Supports up to two Intel ® 64-bit Xeon ® processor(s) of the same type
  • 800MHz system bus
  • Supports 64-bit Operating Systems
  • Supports 32-bit Operating Systems

• Chipset:
  • Intel E7525

• FSB:
  • 800MHz

• Memory:
  • Six 184-pin DIMM sockets
  • Supports up to 12 GB DDR 333 MHz or
  • Supports up to 24 GB DDR 266 MHz
  • Dual channel memory bus
  • Memory must be populated in pairs

• Expansion Slots:
  • 1 (x16) PCI-e Slot
  • 2x 64-bit 66MHz PCI-X (3.3V) slots
  • 2x 32-bit 33MHz PCI (5V) slots

• Manageability:
  • Monitors for CPU Cores, +3.3V, +5V, ±12V & +5V Standby
  • CPU Core 4-Phase-switching voltage regulator with auto-sense from 1.3V-1.5V
  • Adjustable CPU clock frequency ratio settings (via BIOS)
  • Total of six 4-pin fan headers
    6x fans with status monitoring
  • Status monitor with firmware/software on/off control
  • Low noise fan speed control
  • Pulse Width Modulated (PWM) fan connector
  • Temperature Monitoring for CPU, chassis, environment
  • CPU thermal trip support
    Thermal Monitor 2 support
  • CPU Overheat LED
  • System Overheat LED
  • Suspend-state indicator LED
  • Chassis intrusion detection
  • Chassis intrusion header
  • SDDC
