Supermicro X6DH8-G

Part # 108424

Condition : New- Retail Box

| Warranty: 365 days

Brand : Supermicro

| Log in to add review

Rate this product:

Quantity: Out of Stock

Click "Notify" to get an alert when it's available

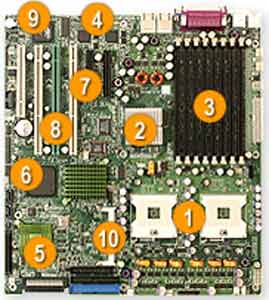

Supermicro X6DH8-G Motherboard

Dual 604 Socket for 64-bit Intel Xeon, Intel E7520, 8 DIMM, RAID, IDE, SATA, USB, Video, LAN, 2 PCI Express 8x, 3 PCI-X, 1 PCI Support.

Supermicro X6DH8-G Dual 604 Socket for 64-bit Intel Xeon, Intel E7520, 8 DIMM, RAID, IDE, SATA, USB, Video, LAN, 2 PCI Express 8x, 3 PCI-X, 1 PCI Support.

Internal I/O Interface:
- 6300ESB (Hance Rapids) SATA Controller
- RAID 0, 1, JBOD support
- Adaptec AIC-7902 Controller
- Dual-Channel Ultra320 SCSI (Host RAID only supports 4 drives)
- Host RAID 0, 1, 10, JBOD support
- Support for Zero-Channel RAID with Adaptec 2010S ZCR Card
  (Card NOT included)
- Support for Intelligent Platform Management Interface v.2.0
Storage/RAID:
- Two Serial ATA ports
- Two SATA hard drives supported
- Dual EIDE channels support up to four UDMA IDE devices
- Supports UDMA Mode 5, PIO Mode 4, and ATA/100

BIOS:
- 8Mb Flash EEPROM with Phoenix ® BIOS
- Plug and Play (PnP)
- SMBIOS 2.3
- APM 1.2
- DMI 2.1
- ACPI 1.0
- Fan Speed Control
On-Board Video:
- ATI Rage XL SVGA PCI video controller
- 8 MB of video memory
Read Panel I/O Ports:
- 2x RJ45 LAN ports
- 2x USB rear ports
- 2x USB internal headers
- USB 2.0 Compliant / 1.1 Compliant
- 1x VGA port
- PS/2 keyboard and mouse ports
- 2 Fast UART 16550 serial ports
- 1 ECP/EEP parallel port

X6DH8-G Specifications

Model:
- Supermicro X6DH8-G

Processor Support:
- Dual 604-pin FC-mPGA4 Sockets
- Supports up to two Intel ® 64-bit Xeon ® processor(s) of the same type
- 800 MHz system bus
- Supports 64-bit Operating Systems
- Supports 32-bit Operating Systems

Chipset:
- Intel E7520
FSB:
- 800 MHz
Memory:
- Eight 184-pin DIMM sockets
- Supports up to 16 GB DDR 333 MHz memory or
- Supports up to 32 GB DDR 266 MHz memory
- Dual channel memory bus
- Memory must be populated in pairs
Expansion Slots:
- 2 (x8) PCI-e slots
- 1x 64-bit 133MHz PCI-X (3.3V) slot
- 2x 64-bit 100MHz PCI-X (3.3V) slots
- 1x 32-bit 33MHz PCI (5V) slot

On-Board LAN:
- 2x Intel ® 82541GI Single Port Gigabit Ethernet Controllers
- Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output

Form Factor:
- Extended ATX
- 12" x 13.05" (30.5cm x 33.2cm)
Manageability:
- Monitors for CPU Cores, +3.3V, +5V, ±12V & +5V Standby
- CPU Core 3-Phase-switching voltage regulator with auto-sense from 0.836V-1.6V
- Total of four 4-pin and four 3-pin fan headers
- 8x fans with status monitoring
- Status monitor with firmware/software on/off control
- Low noise fan speed control
- 4x Pulse Width Modulated (PWM) fan connectors
- Temperature Monitoring for CPU, chassis, environment
- CPU thermal trip support
- CPU Overheat LED
- System Overheat LED
- Suspend-state indicator LED
- Chassis intrusion detection
- Chassis intrusion header
- SDDC
